Single Fiber Rotundity Cable GJFJH

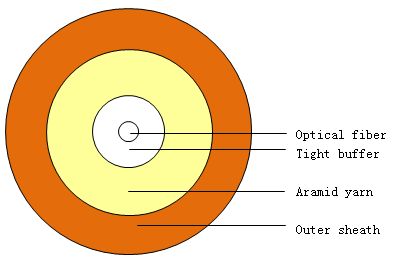

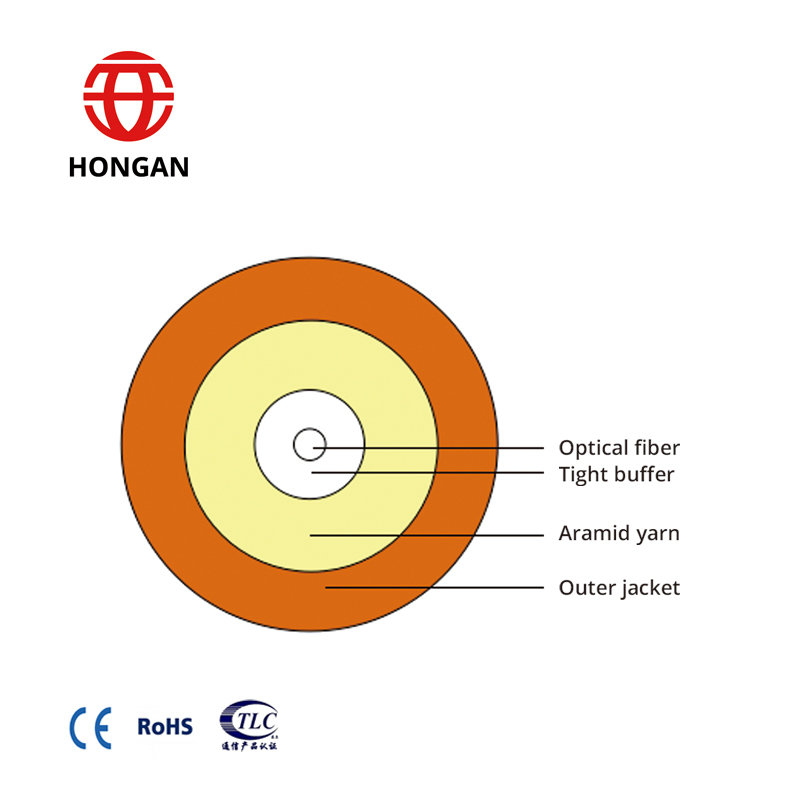

Product Structure:
Product Description:
GJFJH (Tight buffer fiber structure, Aramid yarnstrengh member, LSZH sheath)
Standards:
YD/T 1258. 2-2005Indoor fiber optical cable The second part:Terminal cable assembly with singlecore and dual core cable
Technical Parameters(Typical Value):
Fiber Count | Specifications (mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic |
1 | 1. 6 | 2.0 | 40 | 80 | 200 | 500 | 30 | 60 |
1 | 1. 8 | 2.3 | 40 | 80 | 200 | 500 | 30 | 60 |
1 | 2.0 | 3.0 | 40 | 80 | 200 | 500 | 30 | 60 |
1 | 2.4 | 4.8 | 40 | 80 | 200 | 500 | 30 | 60 |
1 | 3.0 | 6. 7 | 60 | 120 | 200 | 500 | 30 | 60 |
Note 1.The relevanttechnical Parameters can be adjusted according to the customer’s demands;
2.PVC and other material can be used assheath according to the customer’s demands.
