Indoor Cabling Bow-Type Drop Cable
(GJXH, GJXDH, GJXFH, GJXFDH)
1 TraditionalBow-Type Drop Cable

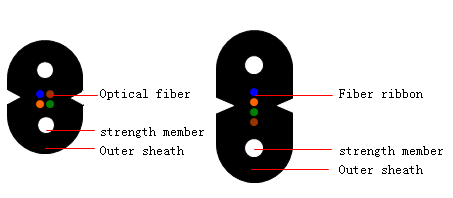

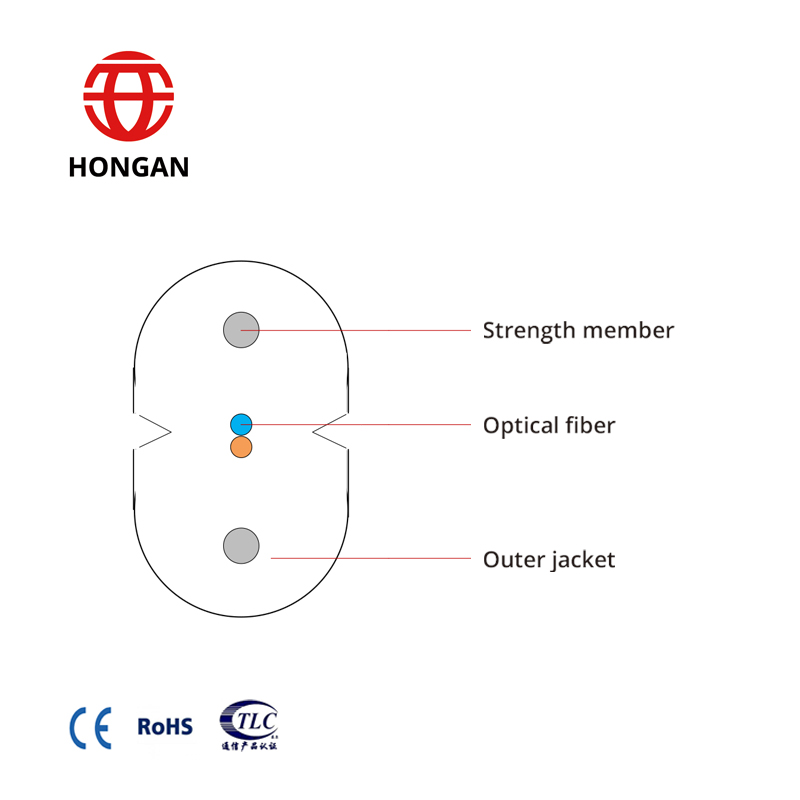

Product Structure:
Product Description:
GJXH (Metalstrength member, LSZH sheath, Non Self-Supporting)
GJXDH (Opticalfiber ribbon, Metal strength member, LSZH sheath, Non Self-Supporting)
GJXFH (Non-metalstrength member, LSZH sheath, Non Self-Supporting)
GJXFDH (Opticalfiber ribbon, Non-metal strength member, LSZH sheath, Non Self-Supporting)
Standards:
YD/T1997-2009 Bow-type drop cable for accessnetwork
Technical Parameters(Typical Value):
Type | Fiber Count | Specifications (mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic |
GJXH | 1, 2, 4 | 2.0×3.0 | 9. 2 | 100 | 200 | 1000 | 2200 | 15 | 30 |
Low friction GJXH | 1, 2 | 1. 6×2.0 | 7. 2 | 100 | 200 | 1000 | 2200 | 15 | 30 |
GJXDH | 4 | 2.0×4.0 | 9. 3 | 100 | 200 | 1000 | 2200 | 15 | 30 |
GJXFH | 1, 2, 4 | 2.0×3.0 | 8. 2 | 40 | 80 | 500 | 1000 | 15 | 30 |
Low friction GJXFH | 1, 2 | 1. 6×2.0 | 5. 5 | 40 | 80 | 500 | 1000 | 15 | 30 |
GJXFDH | 4 | 2.0×4.0 | 8. 3 | 40 | 80 | 500 | 1000 | 15 | 30 |
Note 1. The relevanttechnical Parameters can be adjusted according to the customer’s demands;
2.PVC and other material can be used assheath according to the customer’s demands.
