Outdoor Cabling Bow-Type Drop Cable (GJYXCH, GJYXDCH, GJYXFCH, GJYXFDCH) 1 Traditional Bow-Type Drop
产品详情

Outdoor CablingBow-Type Drop Cable

(GJYXCH, GJYXDCH, GJYXFCH, GJYXFDCH)

1 TraditionalBow-Type Drop Cable

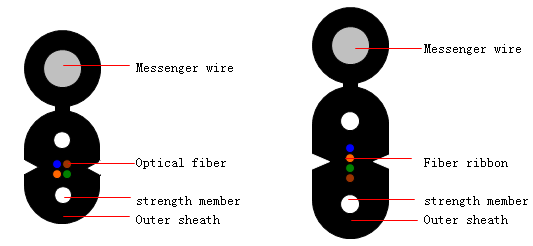

Product Structure:

1 Traditional Bow-Type Drop Cable.jpg

Product Description:

GJYXCH (Metalstrength member, LSZH sheath, Self-Supporting)

GJYXDCH (Opticalfiber ribbon, Metal strength member, LSZH sheath, Self-Supporting)

GJYXFCH(Non-metal strength member, LSZH sheath, Self-Supporting)

GJYXFDCH (Opticalfiber ribbon, Non-metal strength member, LSZH sheath, Self-Supporting)

Standards:

YD/T1997-2009  Bow-type drop cable for accessnetwork

Technical Parameters(Typical Value):

Type

Fiber Count

Specifications

(mm)

Weight (kg/km)

Tensile(N)

Long  Short term    term

Crush(N)

Long    Short term    term

Bending Radius(mm)

Static  Dynamic

GJYXCH

1, 2, 4

2.0×5. 0

18. 1

100

200

1000

2200

15

30

Low friction GJYXCH

1, 2

1. 6×3.7

15. 2

100

200

1000

2200

15

30

GJYXDCH

4

2.0×6. 0

18. 2

100

200

1000

2200

15

30

GJYXFCH

1, 2, 4

2.0×5. 0

13.5

40

80

500

1000

15

30

Low friction GJYXFCH

1, 2

1. 6×3.7

17. 0

40

80

500

1000

15

30

GJYXFDCH

4

2.0×6. 0

17. 1

40

80

500

1000

15

30

Note 1. The relevanttechnical Parameters can be adjusted according to the customer’s demands;

     2.PVC and other material can be used assheath according to the customer’s demands.
