Duct Bow-Type Drop Cable
(GJYXH03, GJYXDH03, GJYXFH03, GJYXFDH03)

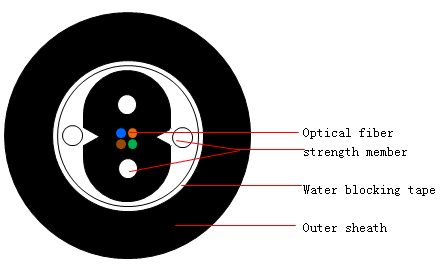

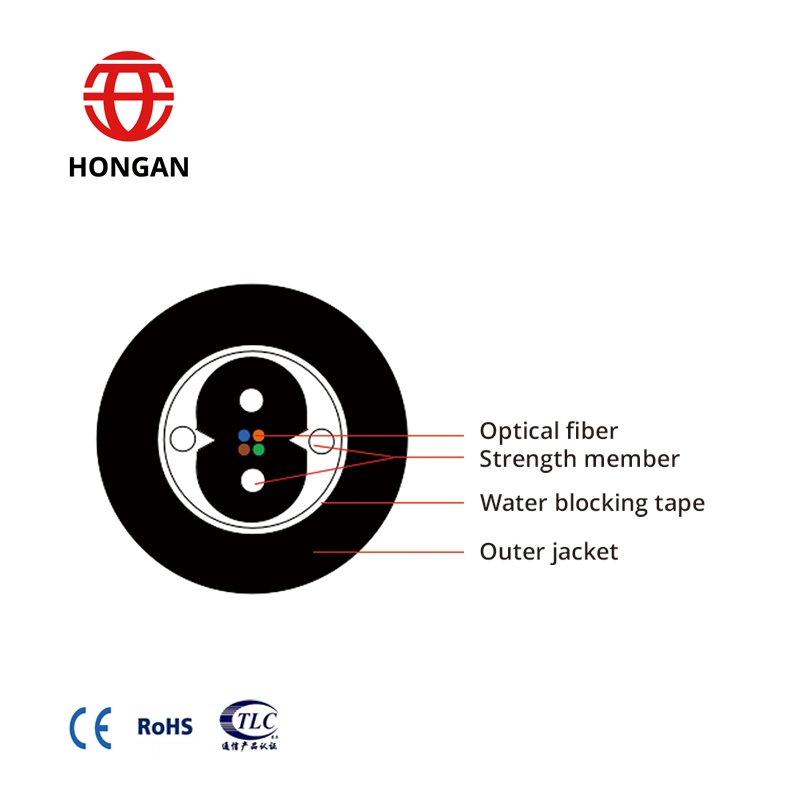

Product Structure:
Product Description:
GJYXH03 (Metalstrength member, LSZH inter sheath, Water blocking tape, PE outer sheath)
GJYXFH03(Non-metal strength member, LSZH inter sheath, Water blocking tape, PE outersheath)
Standards:
YD/T1997-2009 Bow-type drop cable for accessnetwork
Technical Parameters(TypicalValue):
Type | Fiber Count | Diameter (mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic |
GJYXH03 | 1, 2, 4 | 6. 0 | 28. 2 | 300 | 600 | 1000 | 2200 | 15 | 30 |
GJYXFH03 | 1, 2, 4 | 6. 0 | 25. 3 | 100 | 200 | 500 | 2200 | 15 | 30 |
Note 1.The relevanttechnical Parameters can be adjusted according to the customer’s demands;
2.PVC and other material can be used assheath according to the customer’s demands.
