Water-Proof Cable GYBJA
Water-Proof Cable GYBJA
产品详情

Water-Proof Cable GYBJA

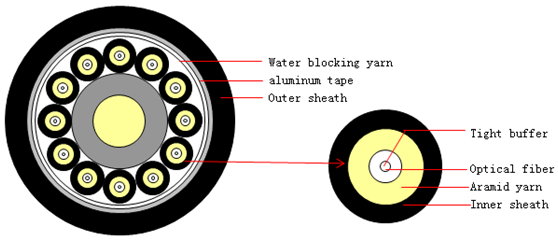

Product Structure:

Water-Proof Cable GYBJA.jpg

Product Description:

GYBJA(Metalstrength member, LSZH inter sheath, Water blocking tape, Outer sheath)

Standards:

YD/T 1258.4-2005  Indoor fiber optical cable Dual corecable

Technical Parameters(Typical Value):

Fiber Count

Structure

Diameter

(mm)

Weight (kg/km)

Tensile(N)

Long    Short term    term

Crush(N)

Long    Short term    term

Bending Radius(mm)

Static  Dynamic

2

1+4

9. 6

68

450

900

300

1000

15

30

4

1+4

9. 6

71

450

900

300

1000

15

30

6

1+6

10. 6

104

500

1000

300

1000

15

30

8

1+8

11. 8

111

600

1200

300

1000

15

30

Note 1.The relevanttechnical Parameters can be adjusted according to the customer’s demands;

     2.PVC and other material can be used assheath according to the customer’s demands.
