Φ0. 9 Invisibility Tight Buffer Fiber
Φ0. 9 Invisibility Tight Buffer Fiber
产品详情

Indoor Invisibility Cable Product

Applications:

The kind of cable is suitable for fiber
to
the
home.


Characteristics:

Low cost, abrasion, high strength and softness.

Low temperature resistant, Excellent oil resistance, resistance to chemicals and environmental performance;

Good toughness and concealment,
installation and maintenance conveniently. Apply to fiber
to
the
home
.


Operating Temperature:-20℃~﹢70℃


Transmission Performance


The Type Of The Fiber
62.5μm(OM1)
850nm/1300nm
50μm(OM2)
850nm/1300nm
50μm(OM3)
850nm/1300nm
SM
1310nm/1550nm
Attenuation Of Maximum Value(dB/km)
3.5/1. 5
3.5/1. 5
3.5/1. 5
0. 4/0. 3
Attenuation Of Typical Value(dB/km)
3.5/1. 5
3.0/1. 0
3.0/1. 0
0. 38/0. 25


Note:Other types of fiber can be provided according to the customer’s demands.











Invisibility Tight Buffer Fiber

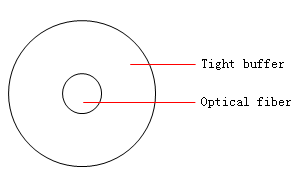

Product Structure:

Product Description:

Invisibility Tight Buffer Fibe

(Tight buffer fiber, Thermoplastic TPU tight buffer)


Standards:

YD/T 1258-2005  Indoor fiber optical cable


Technical Parameters(Typical Value):


Fiber Count
Structure
Specifications
(mm)
Weight (kg/km)
Tensile(N)
Long    Short term    term
Crush(N)
Long    Short term    term
Bending Radius(mm)
Static  Dynamic



1
Tight Buffer Fiber
0.6
0. 40
5
20
200
500
5D
20D
1
Tight Buffer Fiber
0. 9
0. 74
5
20
200
500
5D
20D



Note 1.The relevant technical Parameters can be adjusted according to the customer’s demands;

     2.PVC, PA and other material can be used as sheath according to the customer’s demands.
