UTP CAT5e 25AWG  HSYV-5e 4×2×0.450


Product application

voice, integrated service data network (ISDN), ATM155Mbps and 622Mbps ,100MbpsTPDDI, Fast Ethernet and Gigabit Ethernet.


Product characteristics

1Small diameter Easy to bend and installSaving wiring space

2High transmission frequencyLow crosstalk


Operating Temperature:-20℃~﹢60


Transmission performance


Physical/Electrical characteristics




Differential Phase Delay(Max)
45ns/100m
Impedance
4-100MHz  100±15Ω

Mutual Capacitance(Max)
5. 6nF/100m
D. C Resistance(Max)
9. 5Ω/100m at 20℃;

Dielectric Strength Between Conductors(Min)
2.5kV/2s
Permitted Bend Radius
No less than eight times the cable diameter

Transmission Performance




Frequency
(MHz)
NEXT(Min)
(dB/100m)
ELFEXT(Min)
(dB/100m)
Phase Velocity
(Min)
(m. /s)
Phase Delay
(Max)
(ns/100m)
4
53.3
49
0. 604c
552
8
48. 8
42.9
0. 610c
547
10
47. 3
41
0. 612c
545
16
44.2
36. 9
0. 614c
543
20
42.8
35
0. 615c
542
25
41. 3
33
0. 616c
541
31. 25
39. 9
31. 1
0. 617c
540
62.5
35. 4
25. 1
0. 619c
539
100
32.3
21
0. 620c
538



UTP CAT5e 25AWG

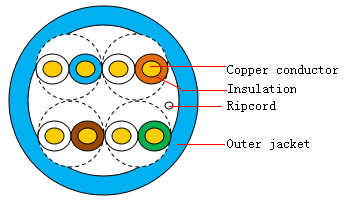

Product structure


Technical parameter(typical)


Specification
Outer diameter(mm)
characteristic impedance(Ω)
Allowable bending radius
(mm)
Weight
KG/KM
UTP CAT5e 25AWG
5.30±0.5
100±15
No less than 8 times the OD
26.32



Notes1.Specific design of outer sheath is available according to the customer’s needs.
