Indoor Symmetrical Pair Cables For Digital Communications Horizontal Floor Wiring-UTP Category 6 UTP
Indoor Symmetrical Pair Cables For Digital Communications Horizontal Floor Wiring-UTP Category 6 UTP
产品详情

UTP CAT6 23AWG  HSYV-6 4×2×0.555


Product application

voice, integrated service data network (ISDN), ATM155Mbps and 622Mbps ,100MbpsTPDDI, Fast Ethernet and Gigabit Ethernet.


Product characteristics

1Small diameter Easy to bend and installSaving wiring space

2High transmission frequencyLow crosstalk


Operating Temperature:-20℃~﹢60


Transmission performance


Physical/Electrical characteristics






Differential Phase Delay(Max)
45ns/100m
Impedance
4-250MHz  100±15Ω



Mutual capacitance(Max)
5. 6nF/100m
D. C Resistance(Max)
7. 5Ω/100m at 20℃



Dielectric Strength Between Conductors(Min)
2.5kV/2s
Permitted Bend Radius
No less than eight times the cable diameter



Transmission Performance






Frequency
(MHz)
Attenuation (Max)
(dB/100m)
NEXT(Min)
(dB/100m)
ELFEXT(Min)
(dB/100m)
RL
(Min)
(dB)
Phase Velocity
(Min)
(m. /s)
Phase Delay
(Max)
(ns/100m)
4
3.8
66. 3
56
23
0. 604c
552
8
5. 3
61. 8
49. 9
24.5
0. 610c
547
10
6. 0
60. 3
48
25
0. 612c
545
16
7. 6
57. 2
43.9
25
0. 614c
543
20
8. 5
55. 8
42
25
0. 615c
542
25
9. 5
54.3
40
24.3
0. 616c
541
31. 25
10. 7
52.9
38. 1
23.6
0. 617c
540
62.5
15. 4
48. 4
32.1
21. 5
0. 619c
539
100
19. 8
45. 3
28
20. 1
0. 620c
538
200
29. 0
40. 8
22
18
0. 622c
537
250
32.8
39. 3
20
17. 3
0. 622c
536


UTP CAT6 23AWG

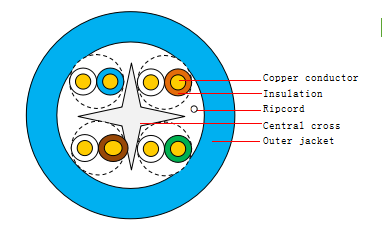

Product structure

Standard

YD/T 1019-2013 Multicore and symmetrical pair cables for digital communications horizontal floor wiring


Technical parameter(typical)


Specification
Conductor diameter
mm
Outer diameter(mm)
characteristic impedance(Ω)
Allowable bending radius
(mm)
Weight
KG/KM
UTP CAT6 23                                                AWG
0.550±0.005
6.3±0.5
100±15
No less than 8 times the OD
36.66



Notes1.Technical parameters can be adjusted according to customer’s needs

      2.Specific design of outer sheath is available according to the customer’s needs.
