GJFH
GJFH
产品详情

Indoor cabling fiber optic cable


Application

This fiber optic cable is suitable for the multi-direction transmission between communication equipment.


Characteristics

Small diameter, light weight, flame retardance, easy to strip, high softness;

High strength aramid yarn, excellent tensile strength ;

stable temperature performance;

LSZH jacket, easy for installation and maintaince.


Operation temperature: -20℃~﹢70℃


Transmission performance


Optical fiber type
62.5μm(OM1)
850nm/1300nm
50μm(OM2)
850nm/1300nm
50μm(OM3)
850nm/1300nm
SM
1310nm/1550nm
Attenuation maximum(dB/km)
3.5/1.5
3.5/1.5
3.5/1.5
0.4/0.3
Attenuationcanonical value(dB/km)
3.5/1.5
3.0/1.0
3.0/1.0
0.38/0.25


Note: other fibers are available on request


GJFH

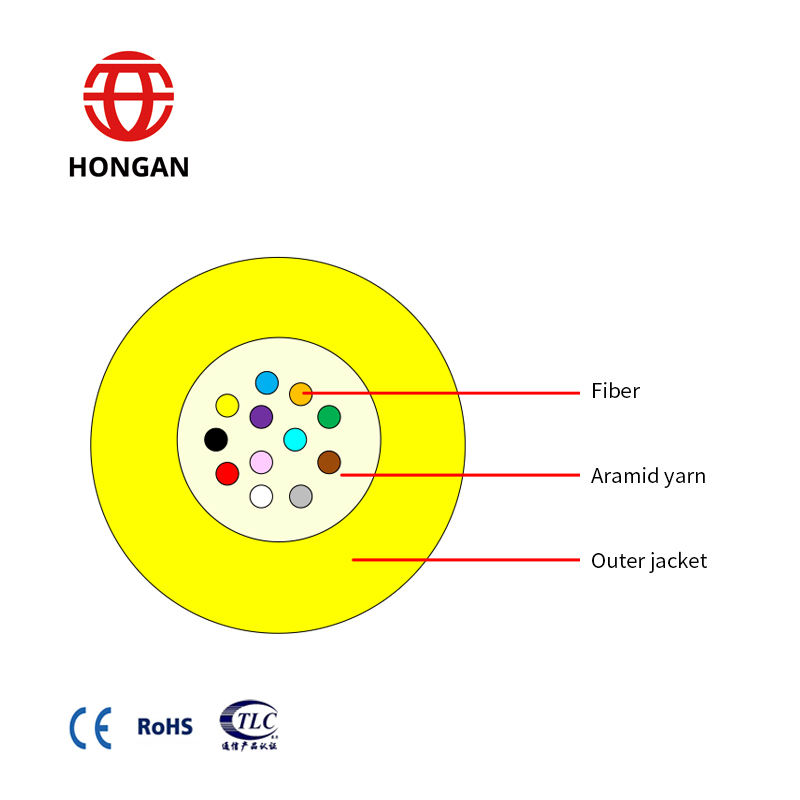

Structure:

室内布线类光缆 GJFH-英文.jpg


Description

GJFH(Armind yarn strength member, LSZH jacket)






Technical parameter(Typical):


Fiber count
Cable diameter(mm)
Tensile (N)
Long term
Tensile (N)
Short term
Crush(N)Long term
Crush(N)Short term
bending radius(mm)
Static
bending radius(mm)
Dynamic
2-12
0.45±0.05
3.2±0.1
100
200
250
500
10D
20D


Note: 1. D refers to the cable diameter;

2. technical parameters could be adjusted on request;

3.PVC and other jacket materials could be used on request。
