UTP CAT3 24AWG HSYV-3 25×2×0.50
UTP CAT3 24AWG HSYV-3 25×2×0.50
产品详情

UTP CAT3 24AWG HSYV-3 25×2×0.50

Productapplication

Atpresent, the cable specified in the ANSI and EIA/TIA568 standards has atransmission frequency of 16MHz. It is mainly used in voice, 10Mbit/s Ethernet(10BASE-T) and 4Mbit/s token ring. The maximum length of network segment is100m.

Productcharacteristics

1Easyto bend, easy to install, save wiring space;

2Thetransmission performance is stable and the crosstalk is low.

OperatingTemperature:-20~﹢60

Transmissionperformance

Physical/Electrical  characteristics

Differential Phase Delay(Max)

45ns/100m

Impedance

4-250MHz   100±15Ω

Mutual capacitance(Max)

5. 6nF/100m

D.  C Resistance(Max)

7. 5Ω/100m at 20℃

Dielectric Strength Between  Conductors(Min)

2.5kV/2s

Permitted  Bend Radius

No less than eight times the cable diameter

Transmission Performance

Frequency

(MHz)

Attenuation (Max)

(dB/100m)

NEXT(Min)

(dB/100m)

ELFEXT(Min)

(dB/100m)

RL

(Min)

(dB)

Phase  Velocity

(Min)

(m. /s)

Phase  Delay

(Max)

(ns/100m)

4

3.8

66. 3

56

23

0. 604c

552

8

5. 3

61. 8

49. 9

24.5

0. 610c

547

10

6. 0

60. 3

48

25

0. 612c

545

16

7. 6

57. 2

43.9

25

0. 614c

543

UTP CAT324AWG

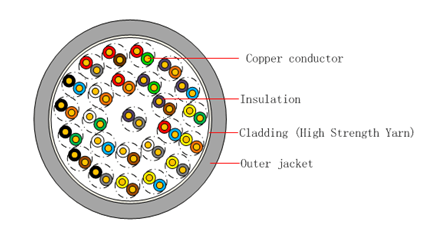

Product structure


Standard

YD/T 1019-2013 Multicore and symmetrical paircables for digital communications horizontal floor wiring

Technical parametertypical

Specification

Outer diameter(mm)

characteristic  impedance(Ω)

Allowable  bending radius

(mm)

Weight

KG/KM

UTP CAT3  24AWG

10.0±0.5

100±15

No less  than 8 times  the OD

149

Notes1.Technical parameters can be adjusted according to customer’sneeds

      2.Specific design of outer sheath isavailable according to the customer’s needs.


Address:No.1  Longwei Road, Wendeng District , Weihai City, Shandong Province, China  Sales telephone: +86-631-8353129
