Self-Supporting Aerial Fiber Optic Cable
Applications:
This kind of cable is suitable for duct and self-supporting aerial Installation.
Characteristics:
Micro tube unit, dry-type, small size, ultra-thin thickness, 12-core micro tube with a diameter of only 1.4 mm.
The ‘8’ figure structure with steel messenger wire is convenient for installation
Resistance to side pressure, excellent mechanical and temperature performance.
The structure of micro tube has better attenuation transmission performance.
Small size, easy peeling, low shrinkage
Operating Temperature:--40℃～﹢70℃
Transmission Performance
Fiber Type
| 62.5μm(OM1) 850nm/1300nm | 50μm(OM2) 850nm/1300nm | G.652 1310nm/1550nm | G.657 A2 1310nm/1550nm |
Attenuation Value Max (dB/km) | 3.5/1.5 | 3.5/1.5 | 0.36/0.22 | 0.36/0.22 |
Typical Attenuation Value (dB/km) | 3.5/1.5 | 3.0/1.0 | 0.35/0.21 | 0.35/0.21 |
Note: Other types of fiber can be provided according to the customer’s demands.
GYFXQC8ZY

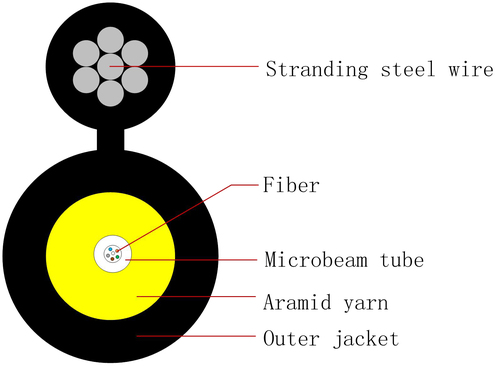

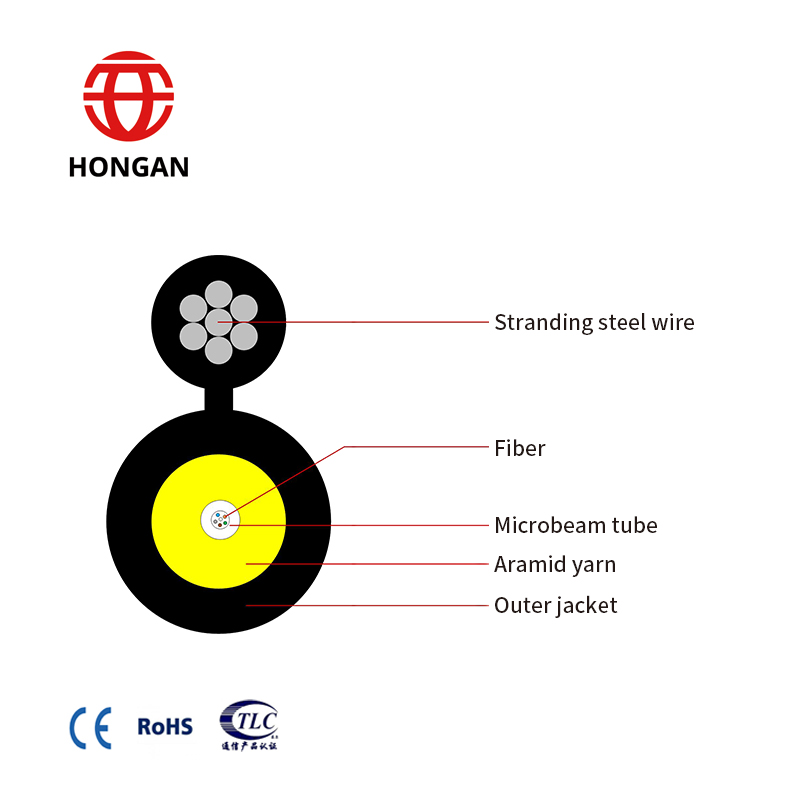

Product Structure:
Product Description:
GYFXQC8ZY （Micro- tube structure,Non-metallic strength member, LSZH sheath、‘8’ figure type）
Standards:
YD/T 1258. 4-2005 Indoor fiber optical cable multi-core cable
Technical Parameters(Typical Value):
Fiber Count | Structure | Diameter (mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic |
|
|
|
4 | Micro tube | 4.0×6.8 | 40 | 300 | 600 | 300 | 1000 | 10D | 20D |
6 | Micro tube | 4.0×6.8 | 40 | 300 | 600 | 300 | 1000 | 10D | 20D |
8 | Micro tube | 4.0×6.8 | 40 | 300 | 600 | 300 | 1000 | 10D | 20D |
12 | Micro tube | 4.0×6.8 | 40 | 300 | 600 | 300 | 1000 | 10D | 20D |
Note 1.D refers to the cable diameter;
2.The relevant technical Parameters can be adjusted according to the customer’s demands;
3.The water-blocking way can be adjusted according to the customer’s demands;
4. The fire-resistance, anti-rodent and anti-ant design can be adjusted according to the customer’s demands
