Indoor cabling fiber optic cable
Application
This fiber optic cable is suitable for the multi-direction transmission between communication equipment.
Characteristics
Small diameter, light weight, easy to strip, high softness;
High strength aramid yarn, excellent tensile strength ;
LSZH jacket, Used for outdoor overhead, reducing the number of welding times and facilitating construction;
The whole optical cable is a non-metallic structure with full medium and effective lightning protection.
Operation temperature: -20℃～﹢70℃
Transmission performance
Optical fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | 50μm（OM3） 850nm/1300nm | SM 1310nm/1550nm |
Attenuation maximum（dB/km） | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 |
Attenuation canonical value（dB/km） | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 | 0.38/0.25 |
Note: other fibers are available on request
GJFJH

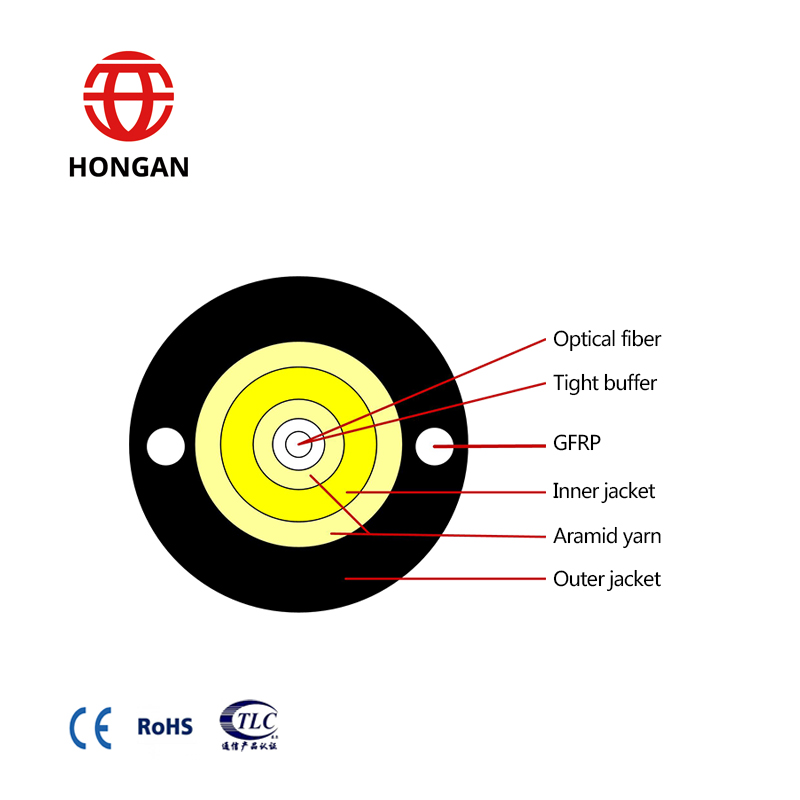

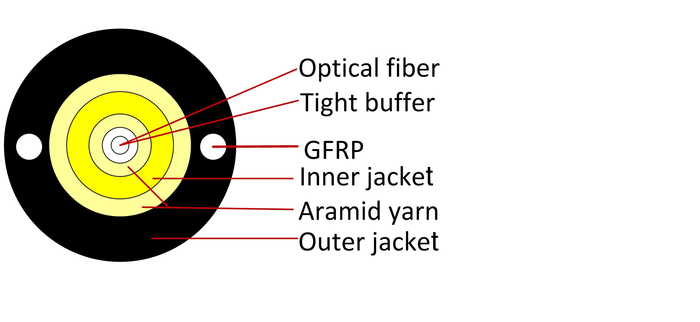

Product Structure:
Product Description:
GJFJH（non-metal Strength member、Armind yarn strength member 、LSZH Inner sheath、PE Outer sheath）
Standards:
YD/T 1258.4-2005 Indoor fiber optic cable series
Technical Parameters(Typical Value):
Fiber Count | Diameter(mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic |
|
|
|
1 | 5.0 | 20.35 | 200 | 400 | 200 | 1000 | 10D | 20D |
Note 1.D refers to the cable diameter;
2.The relevant technical Parameters can be adjusted according to the customer’s demands;
