Indoor cabling fiber optic cable
Applications:
The kind of cable is suitable for the occasion of multi-way transmission between instrument and communication equipments.
Characteristics:
Lighter and small diameter, separated easily and excellent performance of softness;
Parallel FRP、High strength of aramid yarn strength member, excellent performance of tensile strength resistance;
Low smoke halogen - micro tube structure makes construction and maintenance conveniently.
Operating Temperature:-20℃～﹢70℃
Transmission Performance
The Type Of The Fiber | 62.5μm(OM1) 850nm/1300nm | 50μm(OM2) 850nm/1300nm | 50μm(OM3) 850nm/1300nm | SM 1310nm/1550nm |
Attenuation Of Maximum Value(dB/km) | 3.5/1. 5 | 3.5/1. 5 | 3.5/1. 5 | 0. 4/0. 3 |
Attenuation Of Typical Value(dB/km) | 3.5/1. 5 | 3.0/1. 0 | 3.0/1. 0 | 0. 38/0. 25 |
Note:Other types of fiber can be provided according to the customer’s demands.
GYFQY

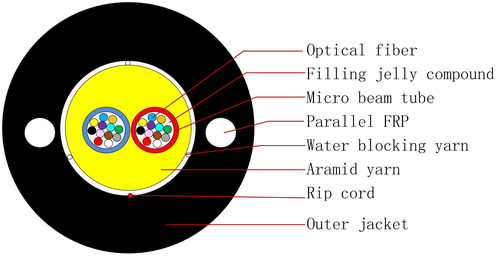

Product Structure:
Product Description:
GYFQY(Microbeam tube, Aramid yarn strengh member, PE sheath with steel wire)
Standards:
YD/T 1258. 4-2005 Indoor optical fiber cable series multi-core optical cable
Technical Parameters(Typical Value):
Fiber Count | The micro tube diameter (mm) | Specifications (mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic |
|
|
|
24 | 1.4 | 6.2 | 29 | 250 | 500 | 300 | 1000 | 10D | 20D |
Note 1.D refers to the cable diameter;
2.The relevant technical Parameters can be adjusted according to the customer’s demands;
3.The design flame resistance, anti-rodent, termite resistant cable according to the customer’s demands.
