Self-Supporting Aerial Fiber Optic Cable

Applications:

This kind of cable is suitable for duct and self-supporting aerial Installation.

Characteristics:

Micro tube unit,  dry-type, small size, ultra-thin thickness, 12-core micro tube with a diameter of only 1.4 mm.

The ‘8’ figure structure with steel messenger wire is convenient for installation

Resistance to side pressure, excellent mechanical and temperature performance.

The structure of micro tube has better attenuation transmission performance.

Small size, easy peeling, low shrinkage

Operating Temperature:--40℃～﹢70℃

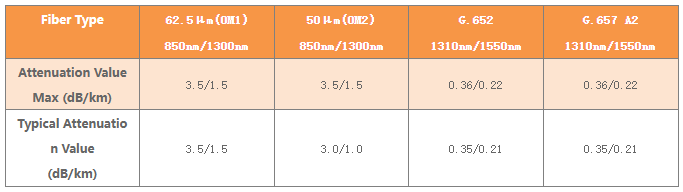

Transmission Performance

Note: Other types of fiber can be provided according to the customer’s demands.

GYFXQC8ZY

Product Structure:

Product Description:

GYFXQC8ZY （Micro- tube structure,Non-metallic strength member, LSZH sheath、‘8’ figure type）

Standards:

YD/T 1258. 4-2005 Indoor fiber optical cable multi-core cable

Technical Parameters(Typical Value):

Note  1.D refers to the cable diameter;

2.The relevant technical Parameters can be adjusted according to the customer’s demands;

3.The water-blocking way can be adjusted according to the customer’s demands;

4. The fire-resistance, anti-rodent and anti-ant design can be adjusted according to the customer’s demands
