Indoor Cabling Cable Product

Applications:

The kind of cable is suitable for the occasion of multi-way transmission between instrument and communication equipments.

Characteristics:

Lighter and small diameter, separated easily and excellent performance of softness;

Glass yarn strength member, excellent performance of tensile strength resistance;

Loose tube structure makes construction and maintenance conveniently.

Operating Temperature:-20℃～﹢70℃

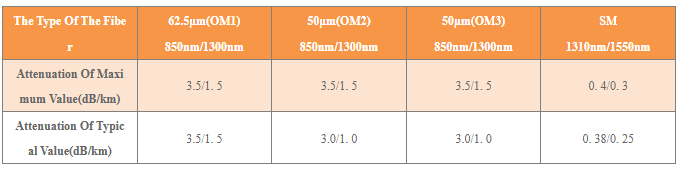

Transmission Performance

Note:Other types of fiber can be provided according to the customer’s demands.

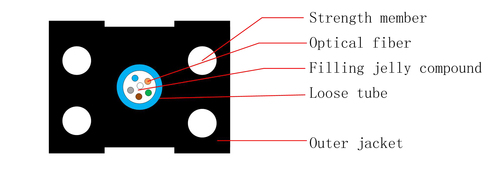

Structure：

Description：

GJXFV （Loose tube、Glass yarn strength member、PVC sheath）

Standards:

YD/T 1997.1-2014 Drop optical fibre cables for telecommunication—Part 1: Bow-type optical fibre cables

Technical Parameters(Typical Value)：

Note   1.D refers to the cable diameter;

2.The relevant technical Parameters can be adjusted according to the customer’s demands;

3.PVC and other material can be used as sheath according to the customer’s demands.
