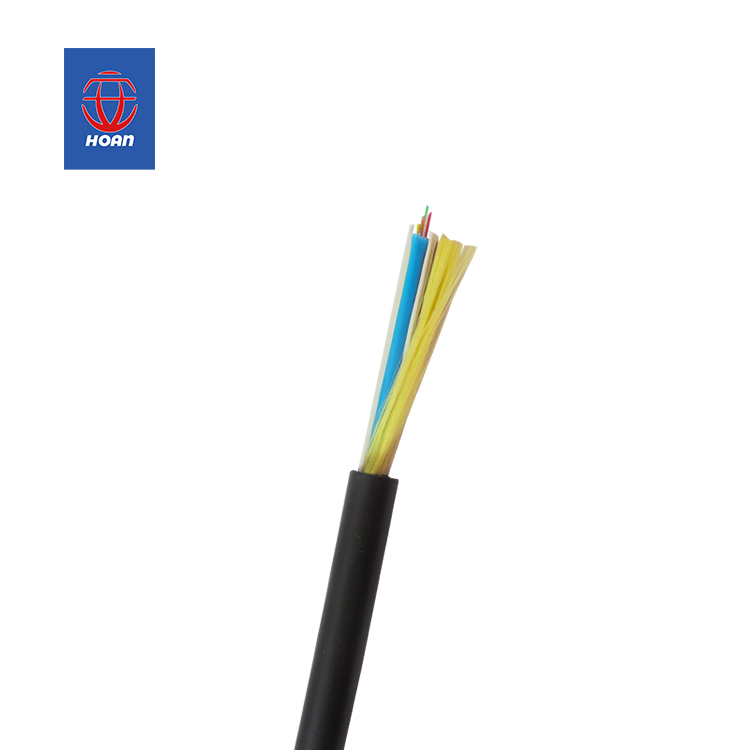

Indoor cabling fiber optic cable

Applications:

The kind of cable is suitable for the occasion of multi-way transmission between instrument and communication equipments.

Characteristics:

Lighter and small diameter, separated easily and excellent performance of softness;

Parallel FRP、High strength of aramid yarn strength member, excellent performance of tensile strength resistance;

Low smoke halogen - micro tube structure makes construction and maintenance conveniently.

Operating Temperature:-20℃～﹢70℃

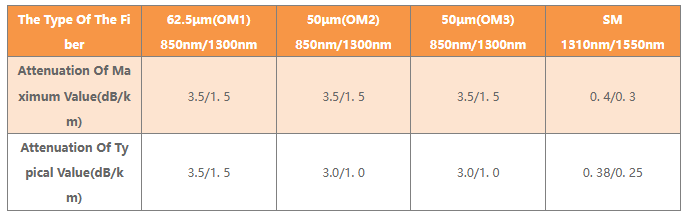

Transmission Performance

Note:Other types of fiber can be provided according to the customer’s demands.

GYFQY

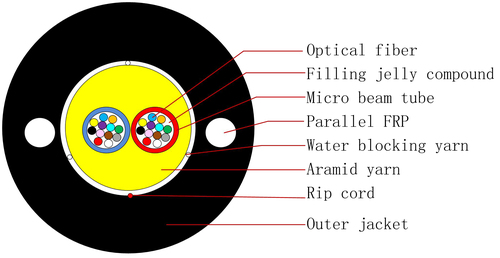

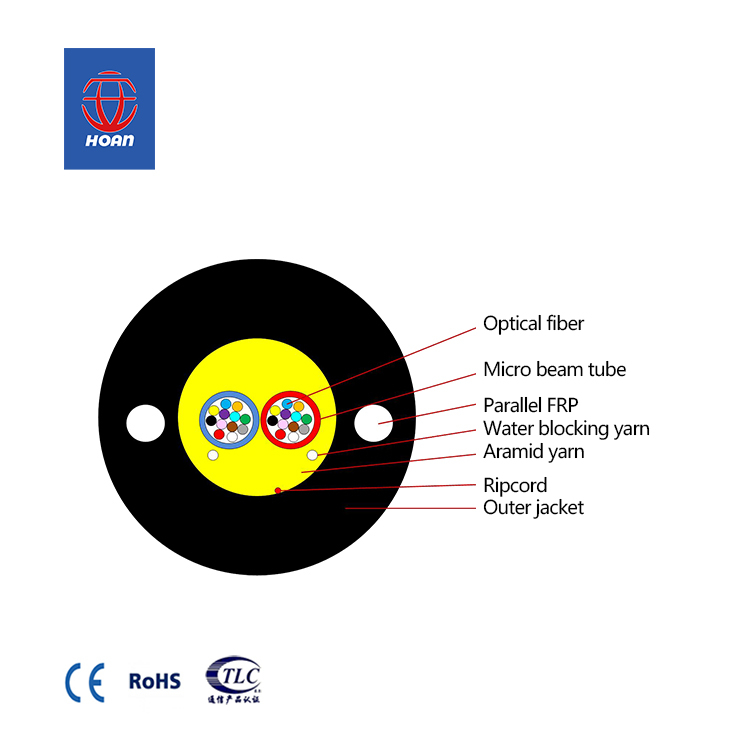

Product Structure:

   Product Description:

GYFQY(Microbeam tube, Aramid yarn strengh member, PE sheath with steel wire)

Standards:

YD/T 1258. 4-2005 Indoor optical fiber cable series multi-core optical cable

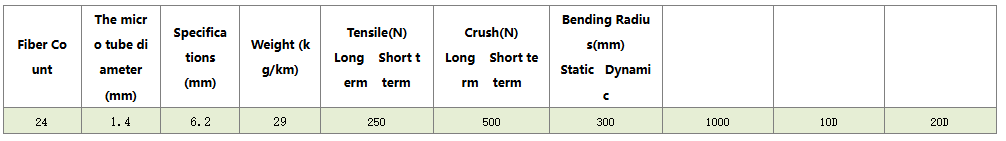

Technical Parameters(Typical Value):

Note   1.D refers to the cable diameter;

      2.The relevant technical Parameters can be adjusted according to the customer’s demands;

      3.The design flame resistance, anti-rodent, termite resistant cable according to the customer’s demands.
