All dielectric strength type fiber optic cable

Application:

Suitable for self-supporting aerial installation for small span;

Mainly used in the last kilometer of FTTH cabling.

Characteristics:

Light weight and small diameter;

High tensile strength， suitable for self-supporting aerial application for small span ;

Excellent lateral pressure resistance and temperature performance;

All dielectric structure， which avoids conducting lighting to home and improves Safety.

Operation temperature: -40℃～﹢70℃

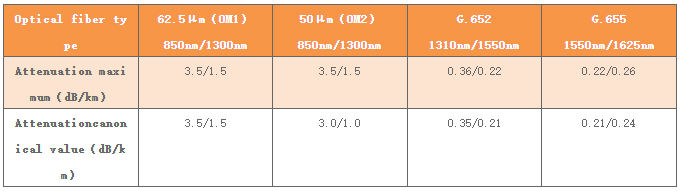

Transmission performance

Note： other fibers are available on customer’s request.

GJYFXTCBY

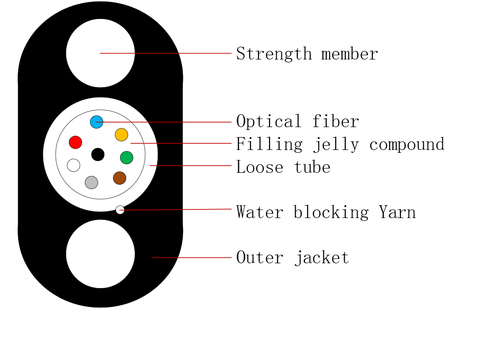

Structure:

Description:

GJYFXTCBY(Non-metallic strength member， loose tube gel-filled type， PE sheath flat outdoor fiber optic cable)

Standard:

YD/T 1770-2008  Indoor and outdoor fiber optic cable for access network

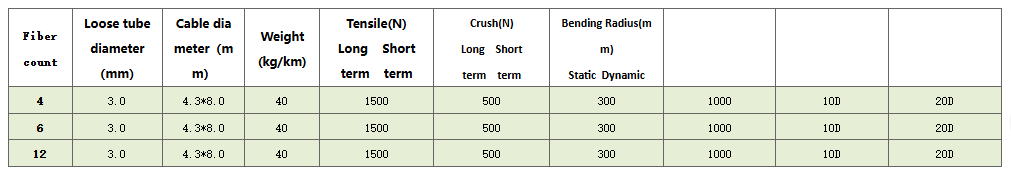

Technical parameter（typical）:

Note：1.D refers to diameter

2.The parameters can be adjusted according to the customer’s requirement

3.Other jacket materials can be used according to the customer’s requirement
