FTTX Drop Cable Product

Applications:

The kind of cable is suitable for fiber to the home.

Characteristics:

Lighter and small diameter, flame retardant , separated easily and excellent performance of softness;

The glass fiber bar, aramid fiber rods are as strength member;

The steel wire and stranding glass fiber bar have excellent performance of tensile strength as the Self-Supporting bow-type drop cable’smessenger wire;

Excellent flame retardant performance、The whole optical cable is a non-metallic structure with all mediums, which is effective for lightning protection.

Operating Temperature:-20℃～﹢70℃

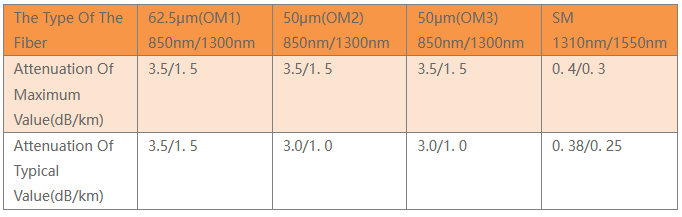

Transmission Performance

Note:Other types of fiber can be provided according to the customer’s demands.

GJYXFCH

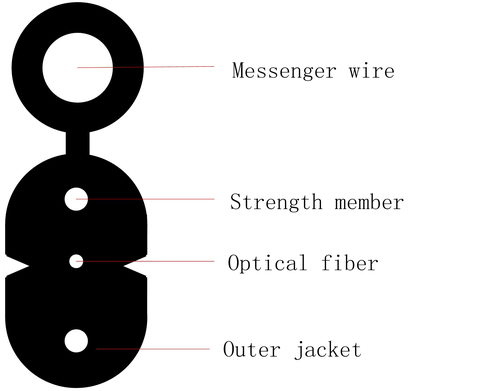

Product Structure:

Product Description:

GJYXFCH（non-metal Strength member、non-metal Messenger wire 、LSZH Outer sheath、）

Standards:

YD/T 1997.1-2014 Drop optical fibre cables for telecommunication Part 1:Bow-type optical fibre cables

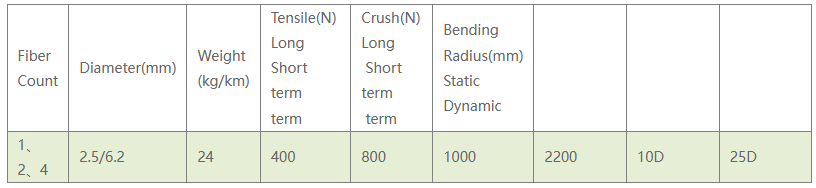

Technical Parameters(Typical Value):

Note   1.D refers to the cable diameter;

2.The relevant technical Parameters can be adjusted according to the customer’s demands;
