FTTH Cable Product

Applications:

The cable is suitable for interconnection between instruments and communication equipment.

Characteristics:

Light weight , small diameter and low Construction Cost;

Optical cable has high compression and tension resistance, suitable for self-supporting aerial application for small span ;

With Aramid yarn strengh member, it has excellent tensile properties.

All dielectric structure,which avoids conducting lighting to home and improves Safety.

Operating Temperature:-20℃～﹢60℃

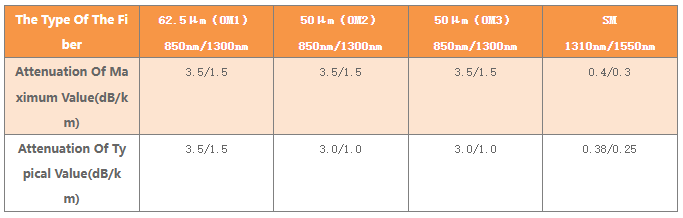

Transmission Performance

Note:Other types of fiber can be provided according to the customer’s demands.

GJYXFCH

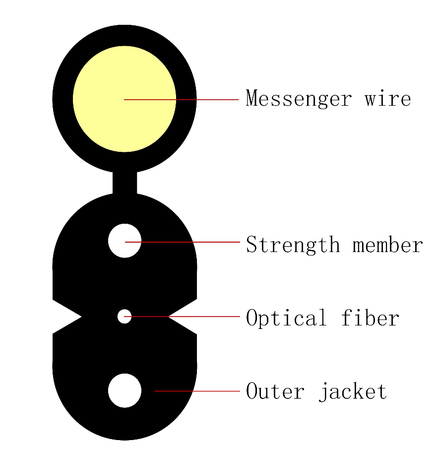

Product Structure:

Product Description:

GJYXFCH(With Aramid yarn strengh member,FRP strength member,,LSZHsheath,Self-Supporting)

Standards:

YD/T 1997-2014 Bow-type drop cables for access network

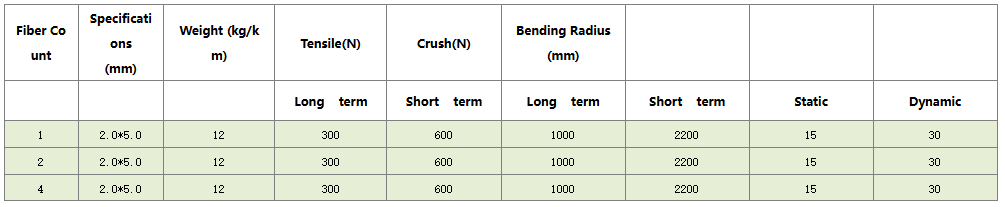

Technical Parameters(Typical Value):

Note1.D refers to the diameter of optical cable；

2.Relevant technical parameters can be adjusted according to customer requirements.
