FTTX Drop Cable Product

Applications:

The kind of cable is suitable for fiber to the home.

Characteristics:

Light weight, easy to install, self-supporting, can be laid along the wall. Excellent environmental resistance;It can be used for lengths of 200M and below

Operating Temperature:-20℃～﹢70℃

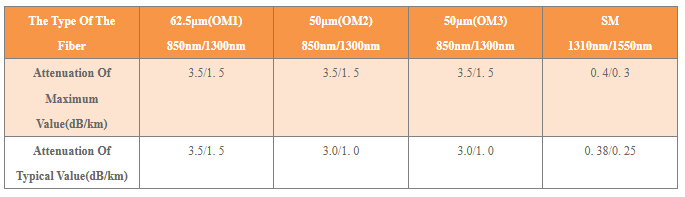

Transmission Performance

Note:Other types of fiber can be provided according to the customer’s demands.

GJYXHC8Y

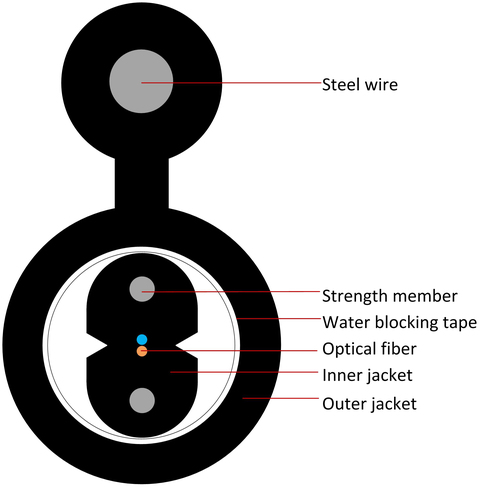

Product Structure:

Product Description:

GJYXHC8Y（metal Strength member、LSZH Inner sheath、PE Outer sheath、‘8’ layer）

Standards:

YD/T 1997.1-2014 Drop optical fibre cables for telecommunication Part 1:Bow-type optical fibre cables

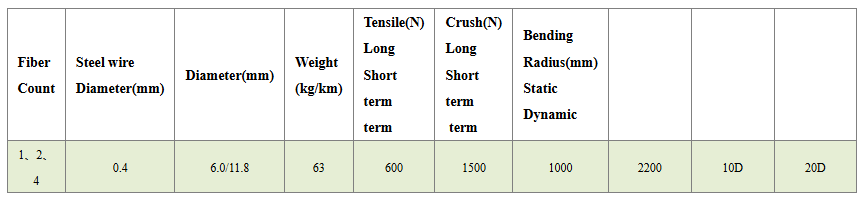

Technical Parameters(Typical Value):

Note   1.D refers to the cable diameter;

2.The relevant technical Parameters can be adjusted according to the customer’s demands;
