PCIe5.0 High Speed Cable
Product Application :
This product is primarily designed for high-performance computing (HPC)
scenarios, including data centers, cloud computing, and AI-driven integration.
Product Features:
1、High-speed transmission, low latency, and excellent interference resistance;
2、Complies with the VW-1 flame test requirements;
3、RoHS 2.0 compliant.
Electrical Characters:
1.RatingTEMP:80℃;VOLTAGE3OV.
2.MaxConductorResistance:381Ω/Km,20℃;
3.DifferentialImpedance:85 士 5Ω
4.CommonModeImpedance:27.5 士 6.5Ω
5.Intra-PairSkew:8ps/m
6.Attenuation(dB/M): Linear to 24GHz
Freq（GHz） | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
Spec | -2.0 | -2.95 | -3.65 | -4.2 | -4.8 | -5.2 | -5.6 | -6.0 | -6.5 | -7.0 |
Product
Category | Gauge/Diameter | Impedance | Wire diameter | Time difference |
20G | 30/0.28±0.008mm | 85±5 Ω | 0.87±0.05*1.7±0.1mm | 8ps/m |
Physical picture：

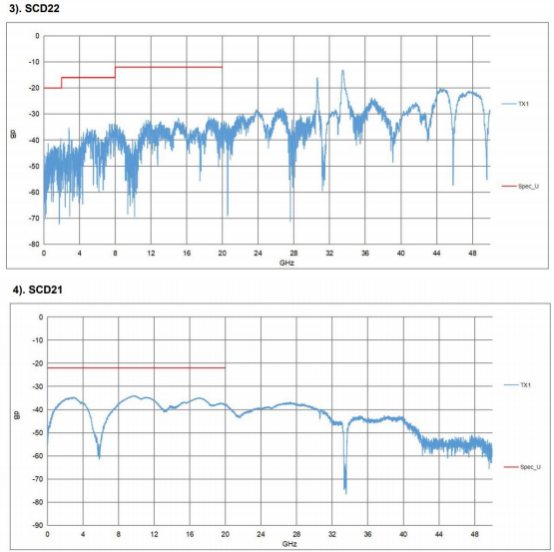

High Frequency Performance Testing Image :
