Indoor double-core parallel invisible optical cable product

Product Application:

This optical cable is mainly suitable for indoor network laying.

Product features:

(1) The dual-core parallel invisible butterfly optical cable has the following characteristics:

In FTTH systems, butterfly optical cables can replace traditional butterfly drop cables during installation, allowing the butterfly cable to be pre-installed before the service reaches the household.

The outer sheath is stripped off, and the dual-core parallel invisible optical cable is introduced into the room.

(2) Although the butterfly optical cable has a different structure from the traditional butterfly introduction optical cable, its installation and application methods are the same, only

The fiber optic cable dimensions have been upgraded from 2mm×3mm to 2.5mm×4mm, and accordingly, the optical fiber's performance must also comply with the industry standard YD/T.

Requirements from January 1997 to 2022.

(3) Ambient temperature:

Transportation/storage temperature: -40°C to +60°C

Compared with the traditional single-end access, the double-core access improves the transmission efficiency;

(5) After entering the house, the invisible effect is good, and branch connection can be carried out;

(6) During installation and laying, the single-core optical cable laying method can be directly adopted, which greatly improves the installation and laying

Efficiency. Moreover, after the product is installed, the dual-core concealed optical cable can be separated at the required location according to actual needs, achieving

Dual-core transmission can be performed simultaneously after one-time laying.

(7) The dual-core parallel concealed optical cable and dual-core parallel concealed butterfly optical cable can be used for 7 different FTTH solutions respectively.

transmission performance

product description ：

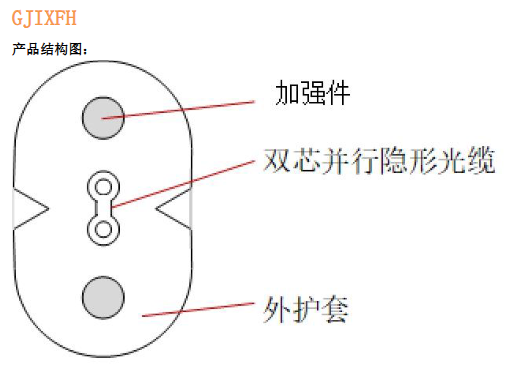

The GJIXFH indoor dual-core parallel optical cable features optical fibers housed within a nylon sheath, with an outer layer formed by extrusion molding of non-metallic FRP and low-smoke halogen-free flame-retardant polyolefin materials into a circular structure. The outer jacket is made of flame-retardant plastic through extrusion molding.

operative norm ：

YD/T 1997.1—2022 Optical Cable for Communication Introduction Part 1: Butterfly Optical Cable

Technical parameters (typical):

GJIXFH-2B6a2

unit ：mm

Note: 1. The corresponding technical parameters can be adjusted according to customer requirements;

3. PVC and other customer-requested sheath materials can be used according to customer needs.

Recommended length:

1000m, but other lengths can be provided upon customer request.
