Indoor & Outdoor Flat Optical Cable GJYFXTCBY Product Series
Product Applications
Product Features
Basic Performance: Light weight, excellent water blocking effect, easy stripping, and pollution-free;
Structural Advantage: Adopting FRP (Fiber Reinforced Plastic) strength members, with good tensile performance;
Protection Capability: The outer sheath material has corrosion resistance, water resistance, and UV resistance properties;
Environmental Adaptability: Operating temperature range is -40℃～﹢70℃.
Transmission Performance
Optical Fiber Type and Attenuation Parameters
Optical Fiber Type | Test Wavelength (nm) | Maximum Attenuation (dB/km) | Typical Attenuation (dB/km) |
SM.G652D | 1310 | 0.40 | 0.36 |
SM.G652D | 1550 | 0.30 | 0.22 |
Notes
Other types of optical fibers that meet customer requirements can also be provided.
GJYFXTCB8Y Product Details

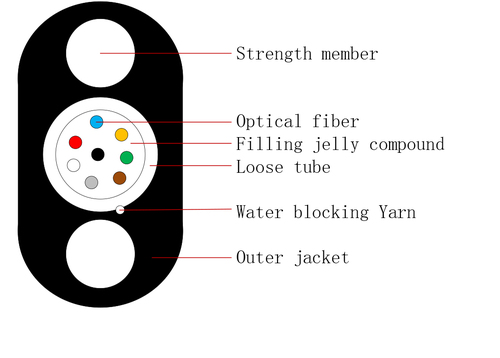

Product Structure Diagram
Product Description
GJYFXTCB8Y (Central Tube Structure, Non-Metallic Strength Members, HDPE (High-Density Polyethylene) Outer Sheath)
Technical Parameters (Typical Values)
Fiber Count | Tube Outer Diameter (mm) | Cable Outer Diameter (mm) | Weight (kg/km) | Tensile Force (N) - Long-term | Tensile Force (N) - Short-term | Crushing Force (N) - Long-term | Crushing Force (N) - Short-term |
4 | 2.0 | 3.3*6.0 | 21 | 300 | 1000 | 300 | 1000 |
6 | 2.0 | 3.3*6.0 | 22 | 300 | 1000 | 300 | 1000 |
8 | 2.0 | 3.3*6.0 | 22 | 300 | 1000 | 300 | 1000 |
12 | 2.0 | 3.3*6.0 | 23 | 300 | 1000 | 300 | 1000 |
Parameter Notes
The value format in the "Outer Diameter" column of the table is "D1*D2", where D refers to the cable diameter;
Corresponding technical parameters can be adjusted according to specific customer requirements;
The data in the above table is for reference only, and the actual parameters shall be subject to the physical product.
Physical Product Image
