Indoor Infrared Cable Series
Product Application:
The cable is suitable for fiber to the home.
Product features:
Low cost, excellent wear resistance, high strength, good elasticity;
The product has good toughness, high hidden performance, self-adhesive, easy to use, installation and maintenance, suitable for optical fiber to the home.
Operating temperature: -10℃ to +50℃
transmission performance
Optical fiber type | 62.5Hm(0M1) 850m/1300mm | 50 Lm(0M2) 850mm/1300mm | 50Hm(OM3) 850m/1300mm | SM 1310mm/1550m |
Maximum attenuation (dB/k m) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 |
Typical attenuation value (dB/k m) | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 | 0.38/0.25 |
Note: Other optical fibers can also be provided based on user requirements.
Auto-Adapt GJI

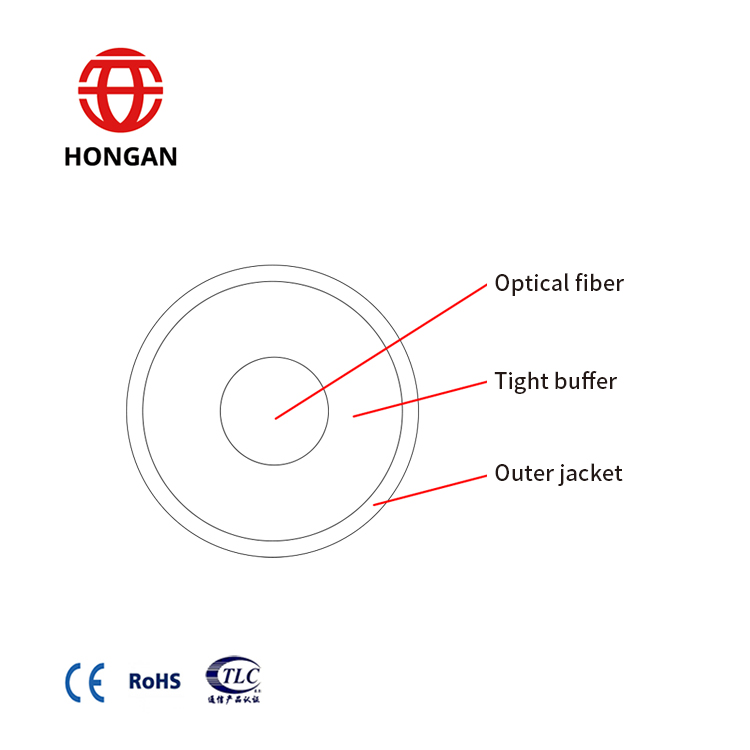

Product structure diagram:
product description ：
Self-adhesive GJI (Glass Fiber Jacket, PVC Jacket, Hot-Melt Adhesive Sheath) Note: The jacket material can be customized according to customer requirements.
operative norm ：
YD/T 1258.7-2019 Indoor Optical Cables Part 7: Hidden Optical Cables YD/T 1258.7-2019 Indoor Optical Cables Part 7: Invisibility Cables
Technical parameters (typical values):
Number of cores | external diameter (mm) | weight （kg/k m) | Stretching force (H) short term | Flattening force (H) Long term short term | Bending radius (mm) Static Dynamic |
|
|
1 | 0.9±0.1 | 0.7 | 10 | 300 | 1000 | 7.5mm | 15mm |
1 | 1.2±0.1 | 1.2 | 10 | 300 | 1000 | 7.5mm | 15mm |
Note 1. The corresponding technical parameters can be adjusted according to customer requirements;
