GYFS Outdoor All-Dry Optical Cable Series
Product Application:
This optical cable is suitable for applications with stringent ROHS environmental compliance requirements.
Product features:
Light weight, good water resistance, easy to peel, no pollution;
FRP reinforced center component with excellent tensile strength;
The whole dry structure is convenient for improving the efficiency of connection during construction.
Operating temperature: -40℃~+70℃~25℃
transmission performance
Optical fiber type | 1310nm | 1550nm |
Maximum attenuation (dB/km) | 0.35 | 0.21 |
Attenuation (dB/km) | 0.345 | 0.20 |
Note: Other optical fibers can also be provided based on user requirements.
GYFS
Product Structure Diagram: Product Description:
GYFS (Dry-type stranded cable with loose sheath, FRP reinforcement, HDPE sheath)
Technical parameters (typical values):
Number of cores | Casing outer diameter (mm) | external diameter (mm) | weight (kg/km) | Stretch force (N) | Flattening force (N) |
over a long period of time | short-term | over a long period of time | short-term |
24 | 2.5 | 11.8 | 126 | 600 | 1500 | 1000 | 2000 |
48 | 2.5 | 11.8 | 123 | 600 | 1500 | 1100 | 2200 |
72 | 2.5 | 11.8 | 120 | 600 | 1500 | 1100 | 2200 |
96 | 2.5 | 13.3 | 147 | 600 | 1500 | 1100 | 2200 |
144 | 2.5 | 16.6 | 220 | 600 | 1500 | 1100 | 2200 |
Note 1.D refers to the diameter of the optical cable;
2. The corresponding technical parameters can be adjusted according to customer requirements;
3. The above data is for reference only.

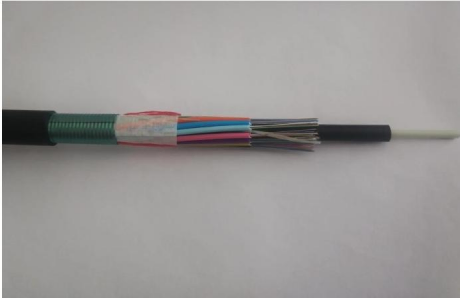

picture of real products ：
