Indoor Cabling Cable Product

Applications:

The kind of cable is suitable for the occasion of multi-way transmission between instrument and communication equipments.

Characteristics:

Lighter and small diameter, flame retardant , separated easily and excellent performance of softness;

High strength of aramid yarn strength member, excellent performance of tensile strength resistance;

Microbeam tube power-on unit structure is convenient for construction and maintenance.

Operating Temperature:-20℃～﹢70℃

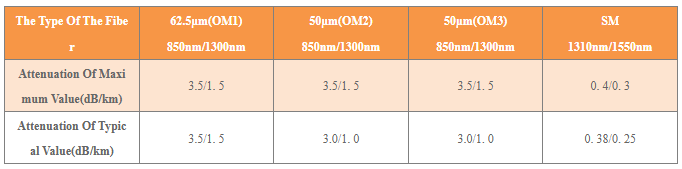

Transmission Performance

Note:Other types of fiber can be provided according to the customer’s demands.

GDJH

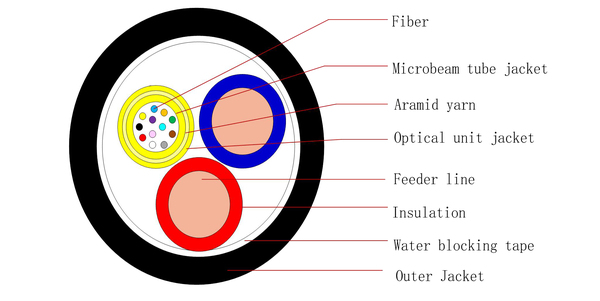

Structure：

Description

GDJH (Stranded structure, aramid yarn reinforcement, polyethylene outer jacket)

Standard:

YD/T 1258. 4-2005 The series of indoor optical fiber cables   Part 4：Multi-flbre optical cables

YD/T 2159-2010   Opto electric composite cable for telecommunications

Technical Parameters(Typical Value):

Note   1.D refers to the cable diameter;

      2.The relevant technical Parameters can be adjusted according to the customer’s demands;

      3.PVC and other material can be used as sheath according to the customer’s demands.
