Indoor Cabling Cable Product

Applications:

The kind of cable is suitable for the occasion of multi-way transmission between instrument and communication equipments.

Characteristics:

Lighter and small diameter, flame retardant , separated easily and excellent performance of softness;

High strength of aramid yarn strength member, excellent performance of tensile strength resistance;

Tight buffer fiber and dry structure makes construction and maintenance conveniently.

Operating Temperature:-20℃～﹢70℃

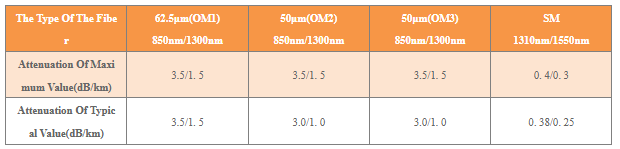

Transmission Performance

Note:Other types of fiber can be provided according to the customer’s demands.

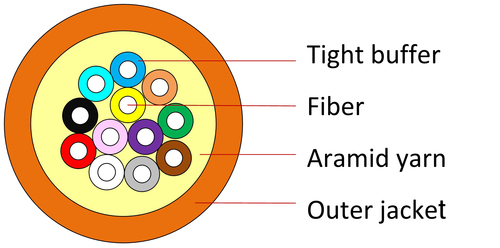

Product Structure:

Product Description:

GJPFJH (Tight buffer fiber structure, Aramid yarn strengh member, LSZH sheath)

Standards:

YD/T 1258. 4-2005 The series of indoor optical fiber cables   Part 4：Multi-flbre optical cables

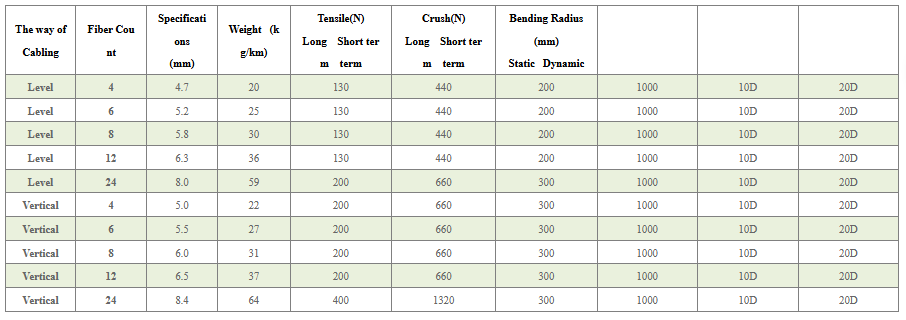

Technical Parameters(Typical Value):

Note   1.D refers to the cable diameter;

2.The relevant technical Parameters can be adjusted according to the customer’s demands;

3.PVC and other material can be used as sheath according to the customer’s demands.
