Indoor cabling fiber optic cable

Application

This fiber optic cable is suitable for the multi-direction transmission between communication equipment.

Characteristics

Small diameter, light weight, easy to strip, high softness;

High strength aramid yarn, excellent tensile strength ;

LSZH jacket, Used for outdoor overhead, reducing the number of welding times and facilitating construction;

The whole optical cable is a non-metallic structure with full medium and effective lightning protection.

Operation temperature: -20℃～﹢70℃

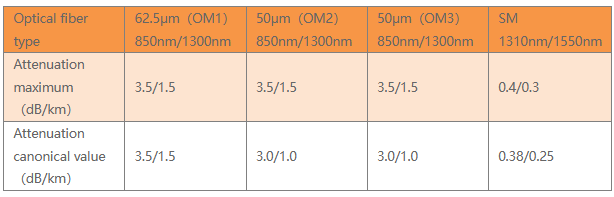

Transmission performance

Note: other fibers are available on request

GJFJH

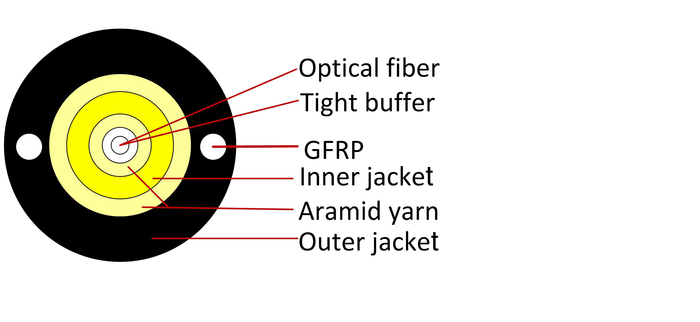

Product Structure:

Product Description:

GJFJH（non-metal Strength member、Armind yarn strength member 、LSZH Inner sheath、PE Outer sheath）

Standards:

YD/T 1258.4-2005 Indoor fiber optic cable series

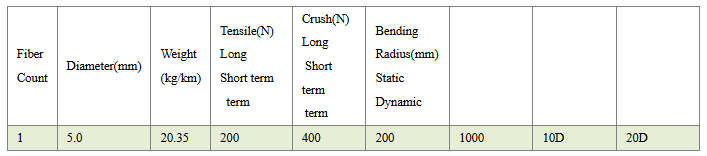

Technical Parameters(Typical Value):

Note   1.D refers to the cable diameter;

2.The relevant technical Parameters can be adjusted according to the customer’s demands;
