HSYV6-2

UTP CAT6HSYV6 (Category 6, PE Insulation, PVC sheath)


Consulting Product
Product Details

Six types of non-shielded communication credit horizontal pair symmetric cable series

Applications:

10Base-T、100Base-T4、100Base-TX、100Base-VG-ANYLAN、155Mbps-ATM、622Mbps ATM、1000Base-T、1000Base-TX、10GBase-T

Characteristics:

Operating Temperature:-20℃~﹢60℃

Indoor six types of non-shielded digital communication credit horizontal pair symmetric cable

UTP CAT6   (HSYV6)

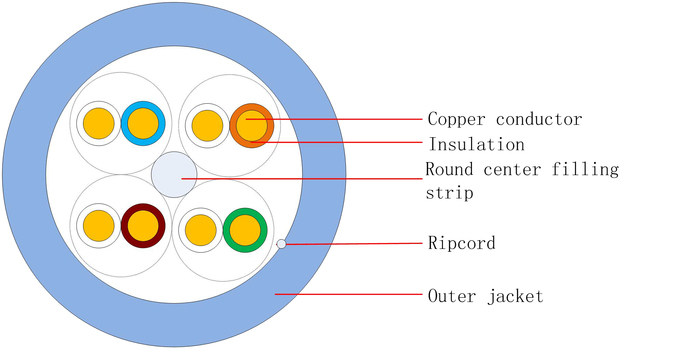

Product Structure:

Product Description:

UTP CAT6HSYV6 (Category 6, PE Insulation, PVC sheath)

Standards:

YD/T 1019-2013 Polyolefin insulated horizontal twisted pair cables for digital communications

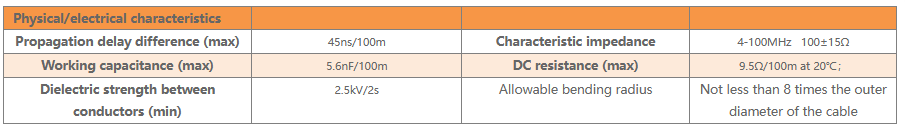

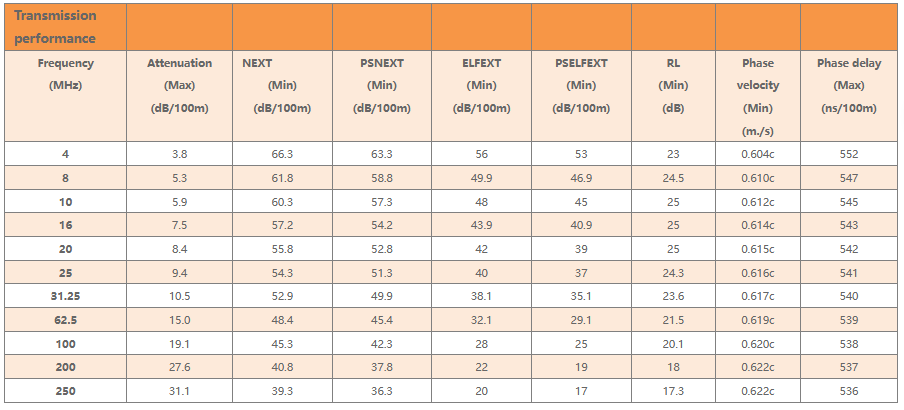

Structure Parameters

(Remarks: 1. Sheath materials such as LSZH can be used according to customers' needs)
