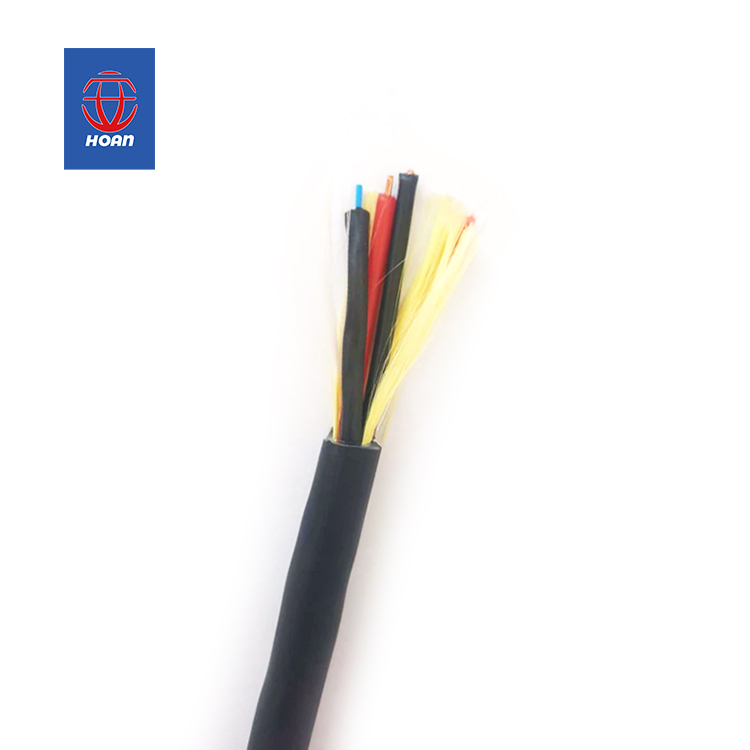

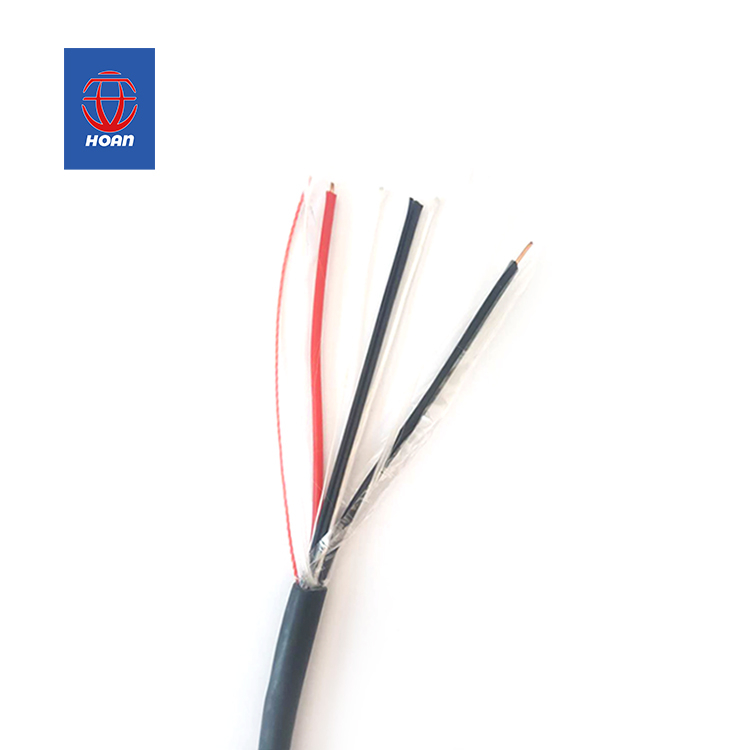

Product series of optoelectronic hybrid cables for access networks
Product Application：
This optical cable is mainly used in DC remote power supply systems or areas with inconvenient power access
Mainly solve the communication and power supply problems of FTTH or mobile communication network terminal equipment
Product Features：
Can simultaneously achieve optical communication and power transmission；
Excellent lateral compression resistance, tensile strength, and good temperature performance；
Operating temperature: -40 ℃ to+70 ℃
transmission performance
Fiber type | 62.5μm（OM1） 850nm/1300nm | 62.5μm（OM1） 850nm/1300nm | G.652 1310nm/1550n | G.655 1550nm/1625nm |
| Maximum attenuation value (dB/km) | 3.5/1.5 | 3.5/1.5 | 0.36/0.22 | 0.22/0.26 |
| Typical attenuation value (dB/km) | 3.5/1.5 | 3.0/1.0 | 0.35/0.21 | 0.21/0.24 |
Note: Other optical fibers that meet user needs can also be provided
GDFJH

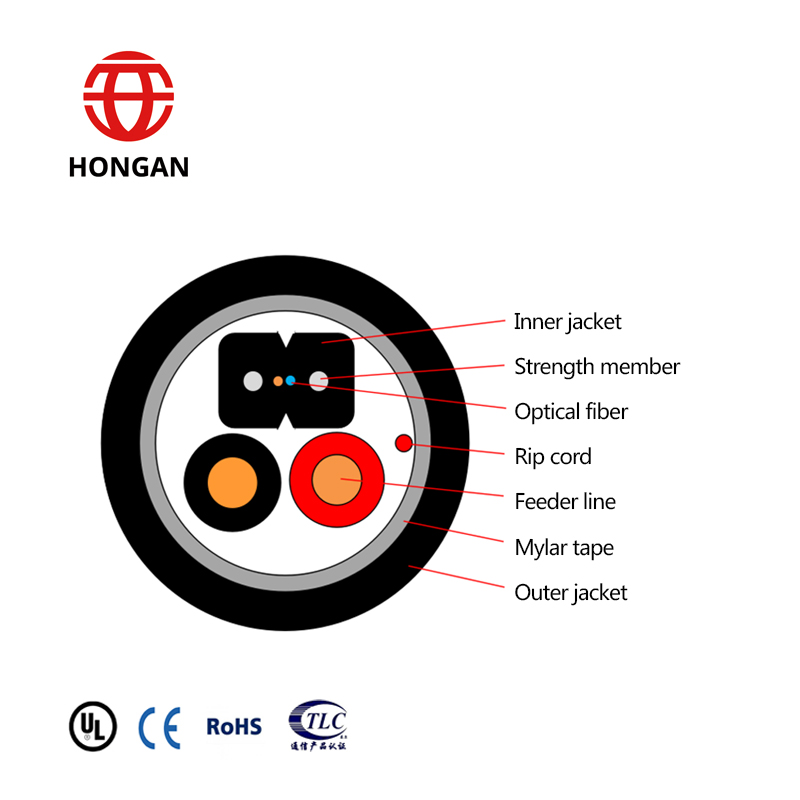

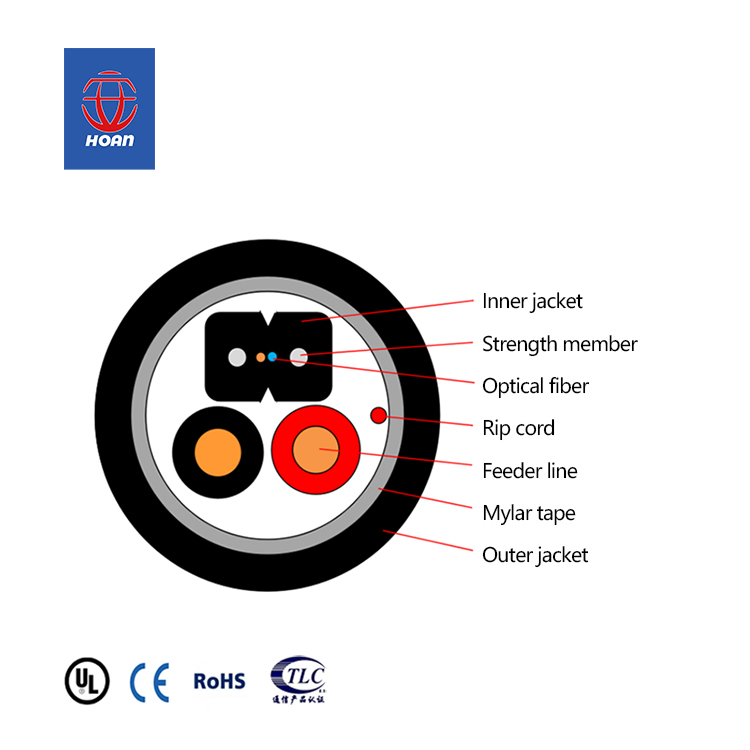

Product Structure Diagram：
execution standard：
YD/T 2159-2010 Optoelectronic Hybrid Cable for Access Network
Technical parameters (typical values):
| core count | Conductor specifications | outer diameter （mm） | Weight (kg/km) | Tensile force (N) long-term short-term | Flattening force (N) long-term short-term | Bending radius (mm) static dynamic |
|
|
|
| 1 | 2×1.0 | 8.5 | 155 | 400 | 800 | 1000 | 3000 | 10D | 20D
|
| 2 | 2×1.0 | 8.5 | 155 | 400 | 800 | 1000 | 3000 | 10D | 20D |
note
D refers to the diameter of the optical cable;
Corresponding technical parameters can be adjusted according to customer needs;
The water blocking method can be adjusted according to customer needs;
Specific designs for flame-retardant, rodent proof, and ant proof optical cables can be made according to customer needs.
