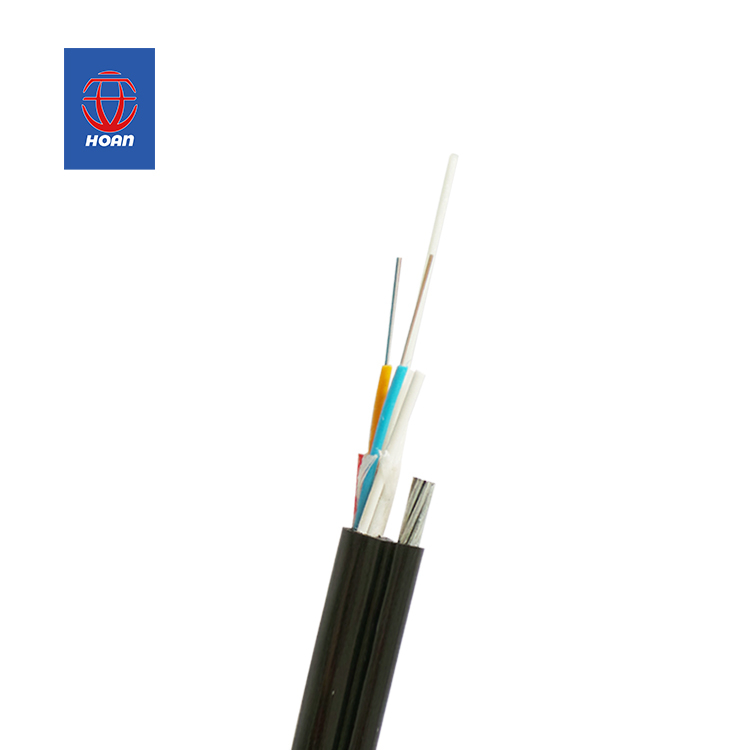

Product Description:

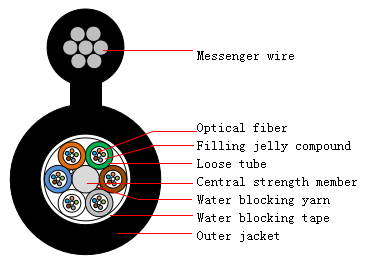

GYFC8Y (Loose tube layer stranded structure, non-metallic reinforcement, semi-dry water-blocking, polyethylene sheath, figure-8 shape)
Execution standard:
YD/T1155-2011 communication 8-shaped self-supporting optical cable
Technical parameters (typical values):
core count
| structure | Outer diameter (mm) | Weight (kg/km) | Tensile force (N) long-term short-term | Flattening force (N) long-term short-term | Bending radius (mm) static dynamic |
| 2-30 | 1+6 | 9.3×16.0 | 126 | 1500 | 4500 | 300 | 1000 | 10D | 20D |
| 32-36 | 1+6 | 9.3×16.0 | 126 | 1500 | 4500 | 300 | 1000 | 10D | 20D |
| 38-60 | 1+6 | 9.9×16.6 | 136 | 1500 | 4500 | 300 | 1000 | 10D | 20D |
| 62-72 | 1+6 | 9.9×16.6 | 137 | 1500 | 4500 | 300 | 1000 | 10D | 20D |
| 74-84 | 1+7 | 10.8×17.5 | 149 | 1500 | 4500 | 300 | 1000 | 10D | 20D |
| 86-96 | 1+8 | 11.4×18.1 | 159 | 1500 | 4500 | 300 | 1000 | 10D | 20D |
| 98-108 | 1+9 | 12.0×18.7 | 170 | 1500 | 4500 | 300 | 1000 | 10D | 20D |
| 110-120 | 1+10 | 12.7×19.4 | 182 | 1500 | 4500 | 300 | 1000 | 10D | 20D |
| 122-132 | 1+11 | 13.3×20.0 | 194 | 1500 | 4500 | 300 | 1000 | 10D | 20D |
| 134-144 | 1+12 | 14.0×20.7 | 208 | 1500 | 4500 | 300 | 1000 | 10D | 20D |
note
D refers to the diameter of the optical cable;
Corresponding technical parameters can be adjusted according to customer needs;
The water blocking method can be adjusted according to customer needs;
Specific designs for flame-retardant, rodent proof, and ant proof optical cables can be made according to customer needs.
