GYTA

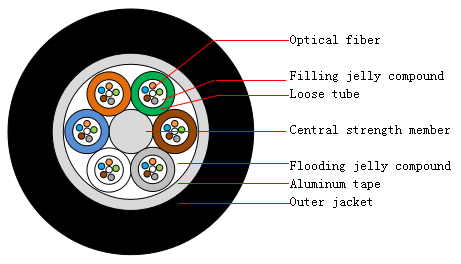

Product Structure Diagram:
Product Description: How to Translate

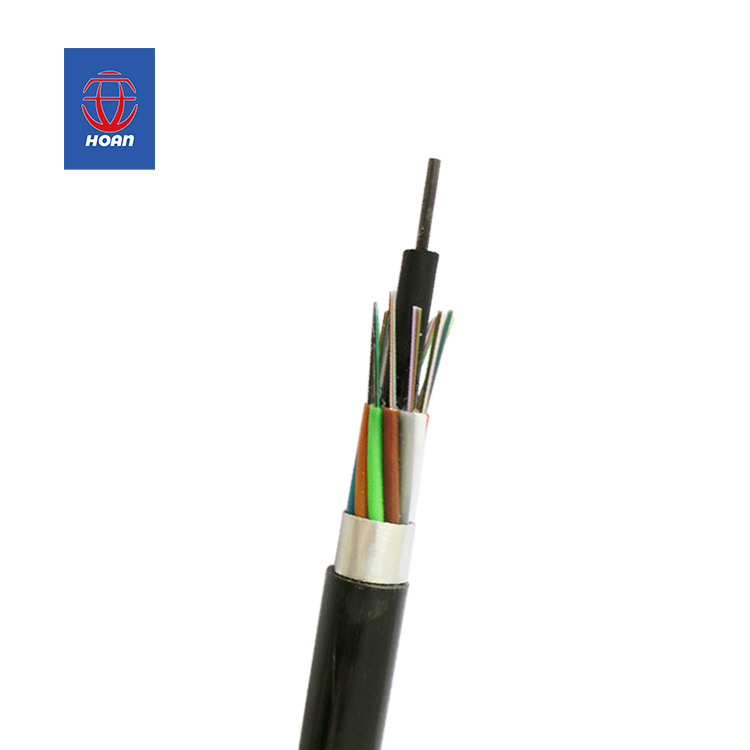

GYTA (loose layer twisted structure, metal reinforcement, cable paste filling, aluminum polyethylene adhesive sheath)
Execution standard:
YD/T 901-2018 communication layer twisted and filled outdoor optical cable
Technical parameters (typical values):
core count | structure | outer diameter （mm） | weight（kg/km） | Tensile force (N) long-term short-term | Flattening force (N) long-term short-term | Bending radius (mm) static dynamic |
2-30 | 1+5 | 9.0 | 74 | 600 | 1500 | 300 | 1000 | 10D | 20D |
32-36 | 1+6 | 9.7 | 97 | 600 | 1500 | 300 | 1000 | 10D | 20D |
38-60 | 1+5 | 9.7 | 87 | 600 | 1500 | 300 | 1000 | 10D | 20D |
62-72 | 1+6 | 10.4 | 108 | 600 | 1500 | 300 | 1000 | 10D | 20D |
74-84 | 1+7 | 11.3 | 120 | 600 | 1500 | 300 | 1000 | 10D | 20D |
86-96 | 1+8 | 12.0 | 131 | 600 | 1500 | 300 | 1000 | 10D | 20D |
98-108 | 1+9 | 12.7 | 145 | 600 | 1500 | 300 | 1000 | 10D | 20D |
110-120 | 1+10 | 13.4 | 159 | 600 | 1500 | 300 | 1000 | 10D | 20D |
122-132 | 1+11 | 14.0 | 172 | 600 | 1500 | 300 | 1000 | 10D | 20D |
134-144 | 1+12 | 14.8 | 190 | 600 | 1500 | 300 | 1000 | 10D | 20D |
146-216 | 1+6+12 | 14.7 | 202 | 600 | 1500 | 300 | 1000 | 10D | 20D |
218-288 | 1+9+15 | 16.7 | 255 | 600 | 1500 | 300 | 1000 | 10D | 20D |
Notes:
D refers to the outer diameter of the optical cable.
Corresponding technical parameters can be adjusted according to customer requirements.
Water blocking methods can be adjusted according to customer requirements.
Specific designs for flame-retardant, rodent-proof and termite-proof optical cables can be customized based on customer needs.
