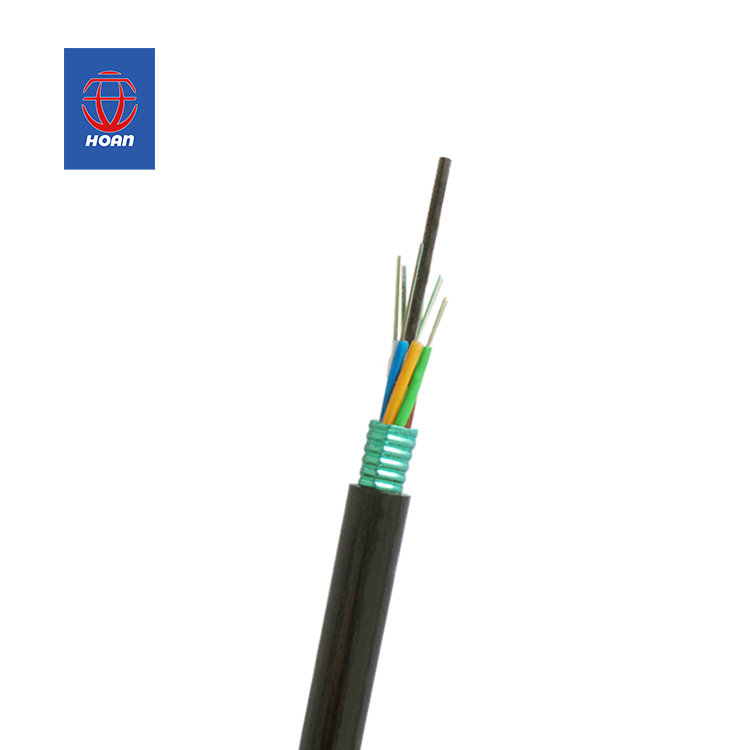

GYTS

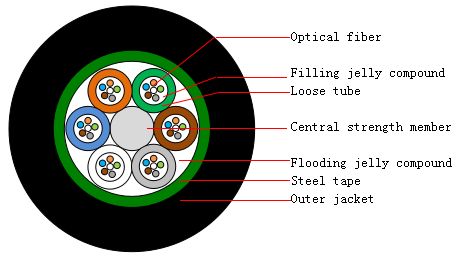

Product Structure Diagram:
Product Description:
GYTS (Loose Tube Stranded Structure, Metal Strength Member, Cable Jelly Filling, Steel-Polyethylene Bonded Sheath)
Executive Standard:
YD/T 901-2018 Stranded Filled Outdoor Optical Fiber Cable for Communication
Technical Parameters (Typical Values):
core count | structure | outer diameter （mm） | weight（kg/km） | tensile force（N） long-term short-term | Flattening force（N） long-term short-term | bend radius（mm） static dynamic |
2-30 | 1+5 | 9.0 | 85 | 600 | 1500 | 300 | 1000 | 10D | 20D |
32-36 | 1+6 | 9.7 | 110 | 600 | 1500 | 300 | 1000 | 10D | 20D |
38-60 | 1+5 | 9.7 | 100 | 600 | 1500 | 300 | 1000 | 10D | 20D |
62-72 | 1+6 | 10.4 | 122 | 600 | 1500 | 300 | 1000 | 10D | 20D |
74-84 | 1+7 | 11.3 | 136 | 600 | 1500 | 300 | 1000 | 10D | 20D |
86-96 | 1+8 | 12.0 | 149 | 600 | 1500 | 300 | 1000 | 10D | 20D |
98-108 | 1+9 | 12.7 | 164 | 600 | 1500 | 300 | 1000 | 10D | 20D |
110-120 | 1+10 | 13.4 | 180 | 600 | 1500 | 300 | 1000 | 10D | 20D |
122-132 | 1+11 | 14.0 | 194 | 600 | 1500 | 300 | 1000 | 10D | 20D |
134-144 | 1+12 | 14.8 | 212 | 600 | 1500 | 300 | 1000 | 10D | 20D |
146-216 | 1+6+12 | 14.7 | 225 | 600 | 1500 | 300 | 1000 | 10D | 20D |
218-288 | 1+9+15 | 16.7 | 282 | 600 | 1500 | 300 | 1000 | 10D | 20D |
Notes:
D refers to the outer diameter of the optical cable.
Corresponding technical parameters can be adjusted according to customer requirements.
Water blocking methods can be adjusted according to customer requirements.
Specific designs for flame-retardant, rodent-proof and termite-proof optical cables can be customized based on customer needs.
