GYFTY

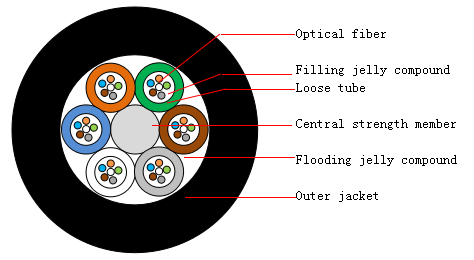

Product Structure Diagram:
Product Description: How to Translate
GYFTY (loose layer twisted structure, non-metallic reinforcement, cable paste filling, polyethylene sheath)
Execution standard:
YD/T 901-2018 communication layer twisted and filled outdoor optical cable
Technical parameters (typical values):
core count | structure | outer diameter （mm） | weight（kg/km） | tensile force（N） long-term short-term | Flattening force（N） long-term short-term | bend radius（mm） static dynamic |
2-30 | 1+6 | 9.0 | 68 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
32-36 | 1+6 | 9.0 | 70 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
38-60 | 1+6 | 9.5 | 77 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
62-72 | 1+6 | 9.5 | 79 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
74-84 | 1+7 | 10.2 | 93 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
86-96 | 1+8 | 10.7 | 100 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
98-108 | 1+9 | 11.4 | 113 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
110-120 | 1+10 | 12.1 | 126 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
122-132 | 1+11 | 12.7 | 140 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
134-144 | 1+12 | 13.5 | 157 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
Note
1. D refers to the diameter of the optical cable;
2. Corresponding technical parameters can be adjusted according to customer needs;
3. The water blocking method can be adjusted according to customer needs;
4. Specific designs for flame-retardant, rodent proof, and ant proof optical cables can be made according to customer needs.
