GYFTA

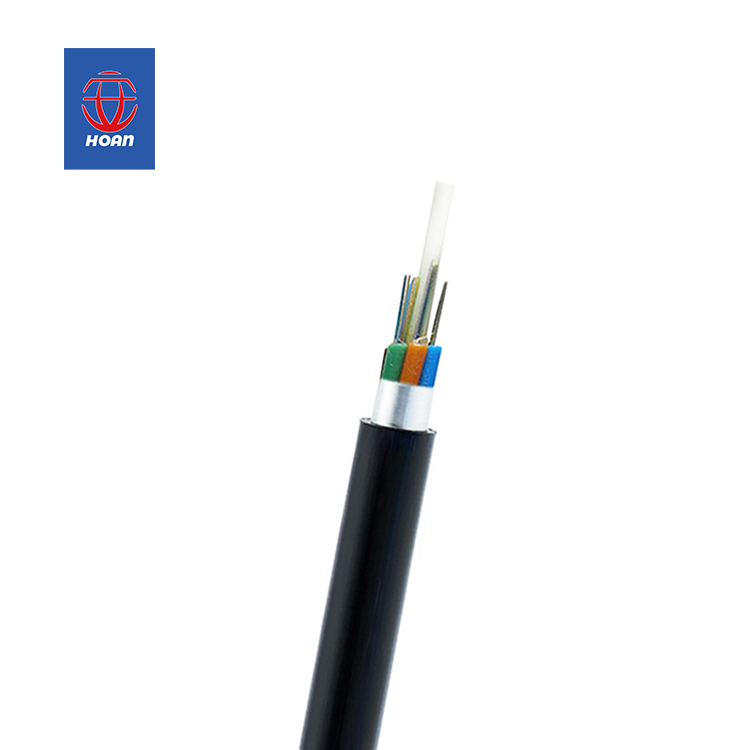

Product Structure Diagram:
Product Description:
GYFTA (Loose Tube Stranded Structure, Non-metallic Strength Member, Cable Compound Filling, Aluminum-Polyethylene Bonded Sheath)
Executive Standard:
YD/T 901-2018 Outdoor Optical Cables with Stranded Filled Structure for Telecommunication
Technical Parameters (Typical Values):
Fiber Count | Structure | Outer Diameter （mm） | Weight （kg/km） | Tensile Force（N） long-term short-term | Flattening force（N） long-term short-term | bend radius（mm） static dynamic |
2-30 | 1+6 | 10.1 | 84 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
32-36 | 1+6 | 10.1 | 86 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
38-60 | 1+6 | 10.7 | 95 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
62-72 | 1+6 | 10.7 | 97 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
74-84 | 1+7 | 11.4 | 113 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
86-96 | 1+8 | 12.0 | 121 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
98-108 | 1+9 | 12.7 | 134 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
110-120 | 1+10 | 13.4 | 149 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
122-132 | 1+11 | 14.0 | 164 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
134-144 | 1+12 | 14.8 | 181 | 600 | 1500 | 300 | 1000 | 12.5D | 25D |
Notes:
D refers to the outer diameter of the optical cable;
Corresponding technical parameters can be adjusted according to customer requirements;
The water-blocking method can be adjusted according to customer requirements;
Specific designs for flame-retardant, rodent-proof, and termite-proof optical cables can be customized based on customer needs.
