GYXTW

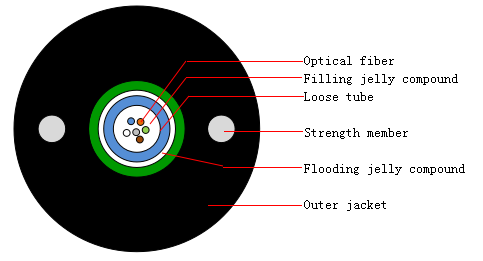

Product Structure Diagram:
Product Description:

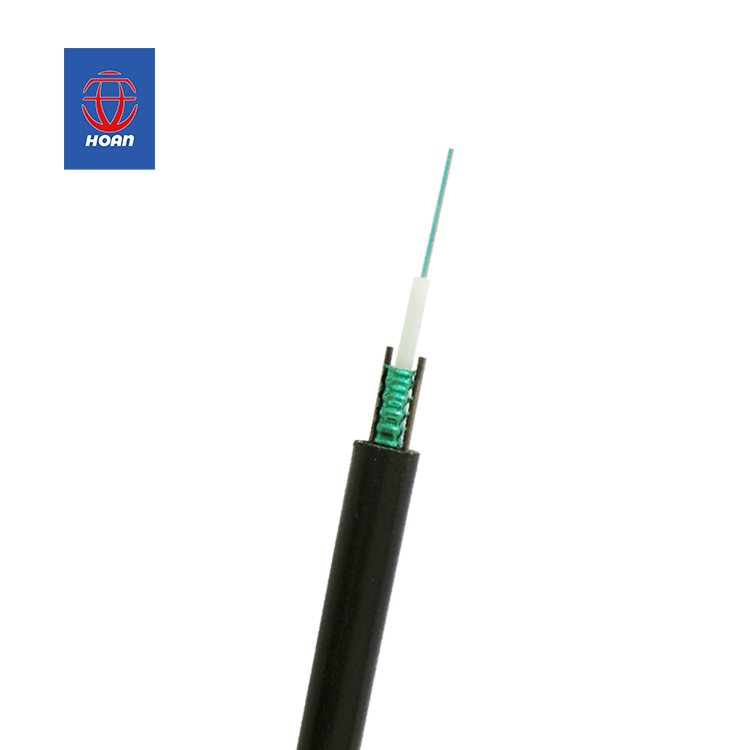

GYXTW (central pipe structure, metal reinforcement, cable paste filling, steel wire polyethylene sheath)
Execution standard:
YD/T 769-2018 Communication Center Tube Filled Outdoor Optical Cable
Technical parameters (typical values):
core count |
structure |
outer diameter （mm） |
weight（kg/km） |
tensile force（N） long-term short-term |
Flattening force（N） long-term short-term |
bend radius（mm） static dynamic |
2-12 | central tube | 8.3 | 73 | 600 | 1500 | 300 | 1000 | 10D | 20D |
14-24 | central tube | 9.1 | 85 | 600 | 1500 | 300 | 1000 | 10D | 20D |
Notes:
D refers to the outer diameter of the optical cable;
Corresponding technical parameters can be adjusted according to customer requirements;
The water-blocking method can be adjusted according to customer requirements;
Specific designs for flame-retardant, rodent-proof, and termite-proof optical cables can be customized based on customer needs.
