GYXTS

Product Description:

GYXTS (central pipe structure, steel wire armor, steel polyethylene adhesive sheath)



Execution standard:

YD/T 769-2018 Communication Center Tube Filled Outdoor Optical Cable

Consulting Product
Product Details

GYXTS

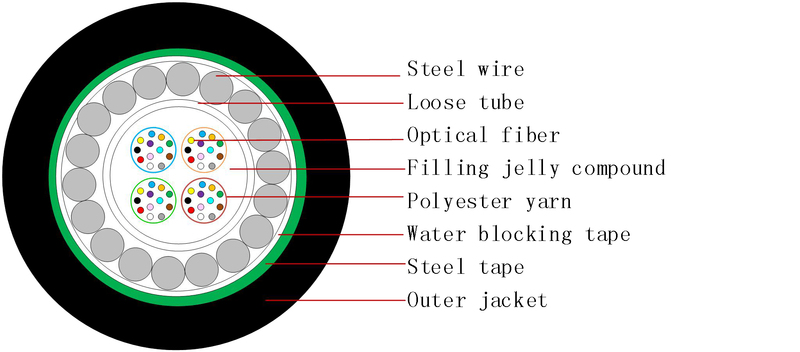

Product Structure Diagram:

Product Description:

GYXTS (central pipe structure, steel wire armor, steel polyethylene adhesive sheath)



Execution standard:

YD/T 769-2018 Communication Center Tube Filled Outdoor Optical Cable



Technical parameters (typical values):

core count

structure

outer diameter

mm)

weight(kg/km)

tensile force(N)

long-term   short-term

Flattening force(N)

long-term   short-term

bend radius(mm)

static  dynamic

2-12

central tube

9.7

132

600

1500

300

1000

12.5D

25D

14-24

central tube

10.5

153

600

1500

300

1000

12.5D

25D

Notes:

  1. D refers to the outer diameter of the optical cable;

  2. Corresponding technical parameters can be adjusted according to customer requirements;

  3. The water-blocking method can be adjusted according to customer requirements;

  4. Specific designs for flame-retardant, rodent-proof, and termite-proof optical cables can be customized based on customer needs.
