Steel wire armored optical cable product series
Product Application:
This optical cable is suitable for laying near the sea, underwater, or uphill.
Product Features:
Excellent waterproof performance;
Good temperature performance;
Steel wire armored optical cables have excellent tensile and compressive properties.
Operating temperature: -40 ℃ to+70 ℃
transmission performance
Fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | G.652 1310nm/1550nm | G.655 1550nm/1625nm |
Maximum attenuation value（dB/km） | 3.5/1.5 | 3.5/1.5 | 0.36/0.22 | 0.22/0.26 |
Typical attenuation value（dB/km） | 3.5/1.5 | 3.0/1.0 | 0.35/0.21 | 0.21/0.24 |
Note: Other optical fibers that meet user needs can also be provided

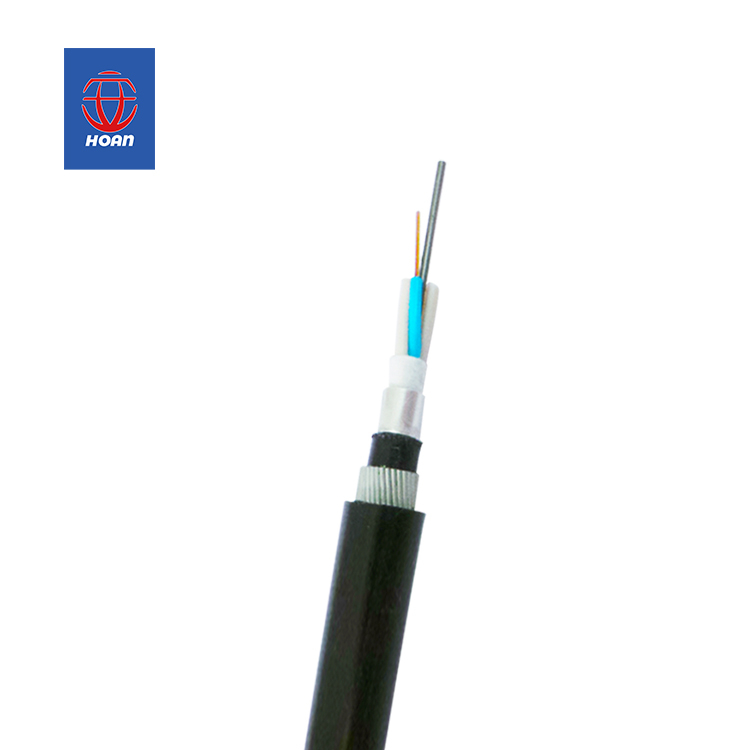

GYTA33

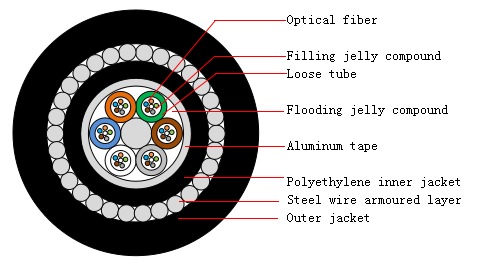

Product Structure Diagram:
Product Description:
GYTA33 (loose layer twisted structure, metal reinforcement, cable paste filling, aluminum polyethylene inner sheath, single fine round steel wire armor layer, polyethylene outer sheath)
Execution standard:
YD/T 901-2018 communication layer twisted and filled outdoor optical cable
Technical parameters (typical values):
core count |
structure |
outer diameter （mm） |
weight（kg/km） |
tensile force（N） long-term short-term |
Flattening force（N） long-term short-term |
bend radius（mm） static dynamic |
2-30 | 1+5 | 13.0 | 270 | 4000 | 10000 | 3000 | 5000 | 12.5D | 25D |
32-36 | 1+6 | 13.5 | 292 | 4000 | 10000 | 3000 | 5000 | 12.5D | 25D |
38-60 | 1+5 | 13.7 | 296 | 4000 | 10000 | 3000 | 5000 | 12.5D | 25D |
62-72 | 1+6 | 14.4 | 335 | 4000 | 10000 | 3000 | 5000 | 12.5D | 25D |
74-84 | 1+7 | 15.3 | 365 | 4000 | 10000 | 3000 | 5000 | 12.5D | 25D |
86-96 | 1+8 | 16.0 | 389 | 4000 | 10000 | 3000 | 5000 | 12.5D | 25D |
98-108 | 1+9 | 16.7 | 421 | 4000 | 10000 | 3000 | 5000 | 12.5D | 25D |
110-120 | 1+10 | 17.4 | 448 | 4000 | 10000 | 3000 | 5000 | 12.5D | 25D |
122-132 | 1+11 | 18.6 | 563 | 4000 | 10000 | 3000 | 5000 | 12.5D | 25D |
134-144 | 1+12 | 19.4 | 601 | 4000 | 10000 | 3000 | 5000 | 12.5D | 25D |
146-216 | 1+6+12 | 18.7 | 520 | 4000 | 10000 | 3000 | 5000 | 12.5D | 25D |
218-288 | 1+9+15 | 20.7 | 620 | 4000 | 10000 | 3000 | 5000 | 12.5D | 25D |
Notes:
D refers to the outer diameter of the optical cable;
Corresponding technical parameters can be adjusted according to customer requirements;
The water-blocking method can be adjusted according to customer requirements;
Specific designs for flame-retardant, rodent-proof, and termite-proof optical cables can be customized based on customer needs.
