Steel wire armored optical cable product series
Product Application:
This optical cable is suitable for laying near the sea, underwater, or uphill.
Product Features:
Excellent waterproof performance;
Good temperature performance;
Steel wire armored optical cables have excellent tensile and compressive properties.
Operating temperature: -40 ℃ to+70 ℃
transmission performance
Fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | G.652 1310nm/1550nm | G.655 1550nm/1625nm |
Maximum attenuation value（dB/km） | 3.5/1.5 | 3.5/1.5 | 0.36/0.22 | 0.22/0.26 |
Typical attenuation value（dB/km） | 3.5/1.5 | 3.0/1.0 | 0.35/0.21 | 0.21/0.24 |
Note: Other optical fibers that meet user needs can also be provided

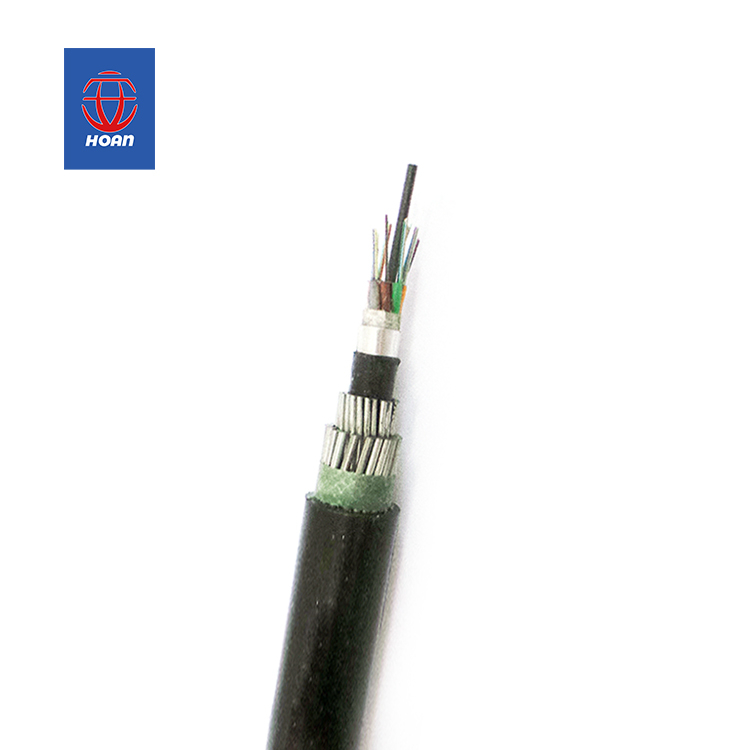

GYTA333

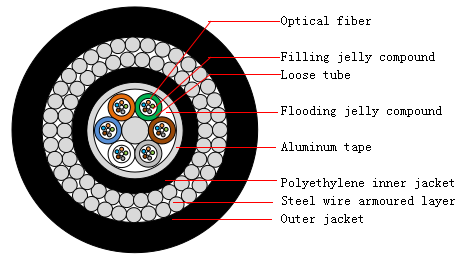

Product Structure Diagram:
Product Description:
GYTA333 (loose layer twisted structure, metal reinforcement, cable paste filling, aluminum polyethylene inner sheath, double thin round steel wire armor layer, polyethylene outer sheath)
Execution standard:
YD/T 901-2018 communication layer twisted and filled outdoor optical cable
Technical parameters (typical values):
core count |
Structure |
outer diameter（mm） |
weight（kg/km） |
tensile force（N） long-term short-term |
Flattening force（N） long-term short-term |
bend radius（mm） static dynamic |
2-30 | 1+5 | 15.8 | 489 | 20000 | 40000 | 4000 | 6000 | 15D | 30D |
32-36 | 1+6 | 16.3 | 521 | 20000 | 40000 | 4000 | 6000 | 15D | 30D |
38-60 | 1+5 | 16.5 | 531 | 20000 | 40000 | 4000 | 6000 | 15D | 30D |
62-72 | 1+6 | 17.2 | 580 | 20000 | 40000 | 4000 | 6000 | 15D | 30D |
74-84 | 1+7 | 18.7 | 716 | 20000 | 40000 | 4000 | 6000 | 15D | 30D |
86-96 | 1+8 | 20.0 | 857 | 20000 | 40000 | 4000 | 6000 | 15D | 30D |
98-108 | 1+9 | 20.7 | 910 | 20000 | 40000 | 4000 | 6000 | 15D | 30D |
110-120 | 1+10 | 21.6 | 991 | 20000 | 40000 | 4000 | 6000 | 15D | 30D |
122-132 | 1+11 | 22.0 | 1036 | 20000 | 40000 | 4000 | 6000 | 15D | 30D |
134-144 | 1+12 | 23.0 | 1096 | 20000 | 40000 | 4000 | 6000 | 15D | 30D |
146-216 | 1+6+12 | 21.5 | 840 | 20000 | 40000 | 4000 | 6000 | 15D | 30D |
218-288 | 1+9+15 | 23.5 | 970 | 20000 | 40000 | 4000 | 6000 | 15D | 30D |
Notes:
D refers to the outer diameter of the optical cable;
Corresponding technical parameters can be adjusted according to customer requirements;
The water-blocking method can be adjusted according to customer requirements;
Specific designs for flame-retardant, rodent-proof, and termite-proof optical cables can be customized based on customer needs.
