All medium reinforced optical cable product series
Product Application:
This optical cable is suitable for pipeline, overhead, and direct burial laying.
This optical cable is suitable for areas with strong electric fields
Product Features:
Excellent waterproof performance;
Excellent lateral compression resistance, tensile strength, and good temperature performance;
Excellent anti electromagnetic interference performance.
Operating temperature: -40 ℃ to+70 ℃
transmission performance
Fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | G.652 1310nm/1550nm | G.655 1550nm/1625nm |
Maximum attenuation value（dB/km） | 3.5/1.5 | 3.5/1.5 | 0.36/0.22 | 0.22/0.26 |
Typical attenuation value（dB/km） | 3.5/1.5 | 3.0/1.0 | 0.35/0.21 | 0.21/0.24 |
Note: Other optical fibers that meet user needs can also be provided

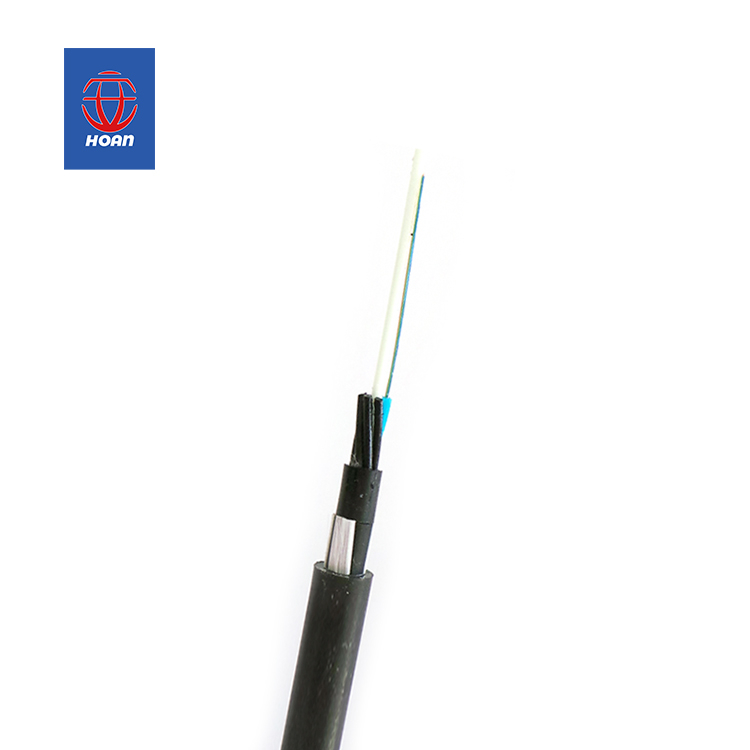

GYFTY73

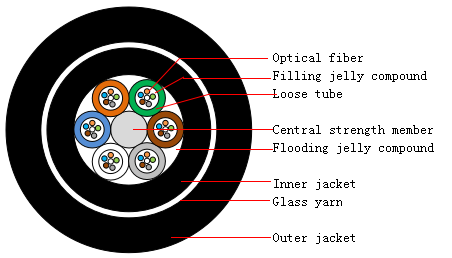

Product Structure Diagram:
Product Description:
GYFTY73 (loose layer twisted structure, non-metallic reinforcement, cable paste filling, polyethylene inner sheath, glass fiber reinforcement, polyethylene outer sheath)
Execution standard:
YD/T 901-2018 communication layer twisted and filled outdoor optical cable
Technical parameters (typical values):
core count |
Structure |
outer diameter（mm） |
weight（kg/km） |
tensile force（N） long-term short-term |
Flattening force（N） long-term short-term |
bend radius（mm） static dynamic |
2-30 | 1+6 | 11.9 | 118 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
32-36 | 1+6 | 11.9 | 119 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
38-60 | 1+6 | 12.6 | 132 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
62-72 | 1+6 | 12.6 | 133 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
74-84 | 1+7 | 13.4 | 155 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
86-96 | 1+8 | 14.1 | 169 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
98-108 | 1+9 | 14.8 | 184 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
110-120 | 1+10 | 15.5 | 200 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
122-132 | 1+11 | 16.3 | 224 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
134-144 | 1+12 | 16.9 | 241 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
Notes:
D refers to the outer diameter of the optical cable;
Corresponding technical parameters can be adjusted according to customer requirements;
The water-blocking method can be adjusted according to customer requirements;
Specific designs for flame-retardant, rodent-proof, and termite-proof optical cables can be customized based on customer needs.
