All medium self-supporting optical cable (ADSS) product series
Product Application:
This optical cable is suitable for self-supporting overhead around electric fields.
Product Features:
Excellent waterproof performance;
Excellent lateral compression resistance, tensile strength, and good temperature performance;
Excellent anti electromagnetic interference performance.
Operating temperature: -40 ℃ to+70 ℃
transmission performance
Fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | G.652 1310nm/1550nm | G.655 1550nm/1625nm |
Maximum attenuation value（dB/km） | 3.5/1.5 | 3.5/1.5 | 0.36/0.22 | 0.22/0.26 |
Typical attenuation value（dB/km） | 3.5/1.5 | 3.0/1.0 | 0.35/0.21 | 0.21/0.24 |
Note: Other optical fibers that meet user needs can also be provided

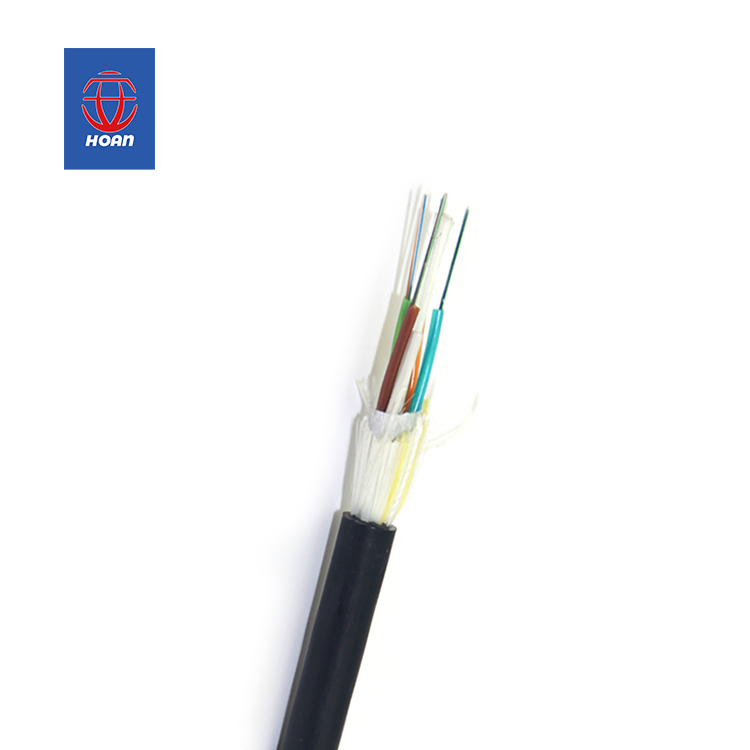

Single protection ADSS

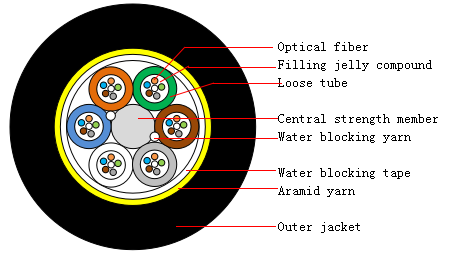

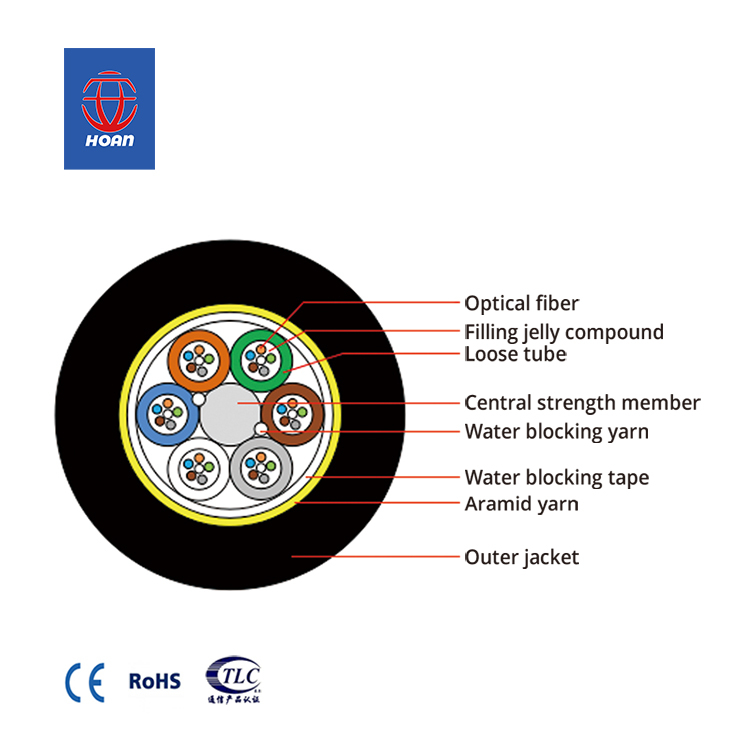

Product Structure Diagram:
Product Description:
Single protection ADSS (loose layer twisted structure, non-metallic reinforcement, semi dry waterproof, aramid yarn reinforcement, polyethylene outer sheath)
Execution standard:
GB/T18899-2002 All medium self-supporting optical cable
Technical parameters (typical values):
core count | Structure | outer diameter（mm） | weight（kg/km） | tensile force（N） long-term short-term | Flattening force（N） long-term short-term | bend radius（mm） static dynamic |
2-30 | 1+6 | 10.5 | 82 | 3.0 | 7.5 | 300 | 1000 | 10D | 20D |
32-36 | 1+6 | 10.5 | 82 | 3.0 | 7.5 | 300 | 1000 | 10D | 20D |
38-60 | 1+6 | 11.1 | 91 | 3.0 | 7.5 | 300 | 1000 | 10D | 20D |
62-72 | 1+6 | 11.1 | 92 | 3.0 | 7.5 | 300 | 1000 | 10D | 20D |
74-84 | 1+7 | 11.3 | 106 | 3.0 | 7.5 | 300 | 1000 | 10D | 20D |
86-96 | 1+8 | 12.5 | 118 | 3.0 | 7.5 | 300 | 1000 | 10D | 20D |
98-108 | 1+9 | 13.1 | 130 | 3.0 | 7.5 | 300 | 1000 | 10D | 20D |
110-120 | 1+10 | 13.9 | 145 | 3.0 | 7.5 | 300 | 1000 | 10D | 20D |
122-132 | 1+11 | 14.5 | 159 | 3.0 | 7.5 | 300 | 1000 | 10D | 20D |
134-144 | 1+12 | 15.2 | 174 | 3.0 | 7.5 | 300 | 1000 | 10D | 20D |
Note
1. D refers to the diameter of the optical cable;
2. Corresponding technical parameters can be adjusted according to customer needs.
