All medium self-supporting optical cable (ADSS) product series
Product Application:
This optical cable is suitable for self-supporting overhead around electric fields.
Product Features:
Excellent waterproof performance;
Excellent lateral compression resistance, tensile strength, and good temperature performance;
Excellent anti electromagnetic interference performance.
Operating temperature: -40 ℃ to+70 ℃
transmission performance
Fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | G.652 1310nm/1550nm | G.655 1550nm/1625nm |
Maximum attenuation value（dB/km） | 3.5/1.5 | 3.5/1.5 | 0.36/0.22 | 0.22/0.26 |
Typical attenuation value（dB/km） | 3.5/1.5 | 3.0/1.0 | 0.35/0.21 | 0.21/0.24 |
Note: Other optical fibers that meet user needs can also be provided

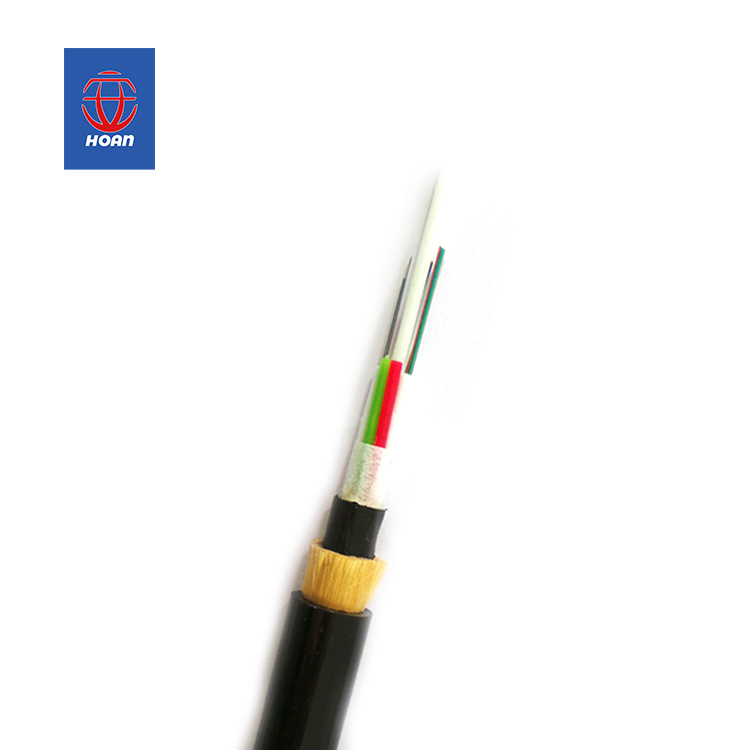

Dual protection ADSS

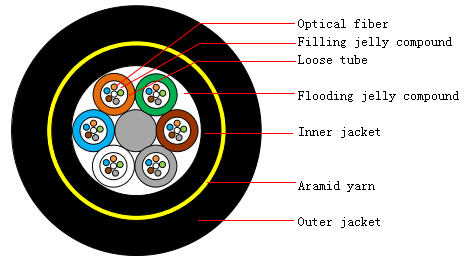

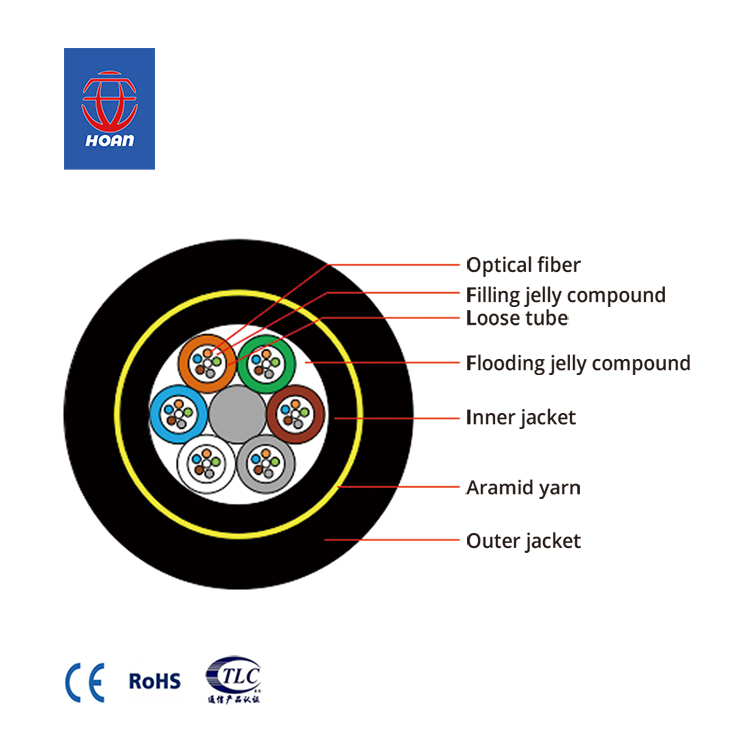

Product Structure Diagram:
Product Description:
Double protection ADSS (loose layer twisted structure, non-metallic reinforcement, cable paste filling, polyethylene inner sheath, aramid yarn reinforcement, polyethylene outer sheath)
Execution standard:
GB/T18899-2002 All-Dielectric Self-Supporting Optical Cable
Technical parameters (typical values):
core count | Structure | outer diameter（mm） | weight（kg/km） | Maximum operating tension (KN) | Rated tensile strength (KN) | Flattening force (N) Long term and short-term | Bending radius (mm) Static and dynamic |
2-30 | 1+6 | 12.8 | 117 | 4.0 | 10 | 1000 | 3000 | 12.5D | 25D |
32-36 | 1+6 | 12.8 | 117 | 4.0 | 10 | 1000 | 3000 | 12.5D | 25D |
38-60 | 1+6 | 13.5 | 127 | 4.0 | 10 | 1000 | 3000 | 12.5D | 25D |
62-72 | 1+6 | 13.5 | 128 | 4.0 | 10 | 1000 | 3000 | 12.5D | 25D |
74-84 | 1+7 | 15.0 | 144 | 4.0 | 10 | 1000 | 3000 | 12.5D | 25D |
86-96 | 1+8 | 15.0 | 162 | 4.0 | 10 | 1000 | 3000 | 12.5D | 25D |
98-108 | 1+9 | 15.7 | 177 | 4.0 | 10 | 1000 | 3000 | 12.5D | 25D |
110-120 | 1+10 | 16.5 | 196 | 4.0 | 10 | 1000 | 3000 | 12.5D | 25D |
122-132 | 1+11 | 17.1 | 211 | 4.0 | 10 | 1000 | 3000 | 12.5D | 25D |
134-144 | 1+12 | 18.2 | 229 | 4.0 | 10 | 1000 | 3000 | 12.5D | 25D |
Note
1. D refers to the diameter of the optical cable;
2. Corresponding technical parameters can be adjusted according to customer needs.
