Self supporting overhead optical cable product series
Product Application:
This optical cable is suitable for self-supporting overhead.
Product Features:
Excellent waterproof performance;
Excellent lateral compression resistance, tensile strength, and good temperature performance;
The 8-shaped overhead structure with steel suspension wires is easy to lay.
Operating temperature: -40 ℃ to+70 ℃
transmission performance
Fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | G.652 1310nm/1550nm | G.655 1550nm/1625nm |
Maximum attenuation value（dB/km） | 3.5/1.5 | 3.5/1.5 | 0.36/0.22 | 0.22/0.26 |
Typical attenuation value（dB/km） | 3.5/1.5 | 3.0/1.0 | 0.35/0.21 | 0.21/0.24 |
Note: Other optical fibers that meet user needs can also be provided

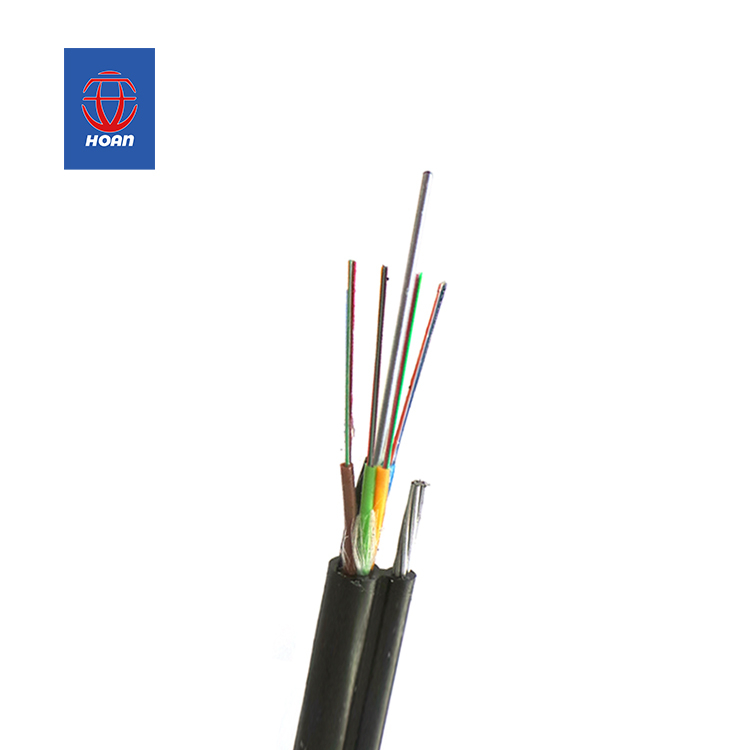

GYTC8Y

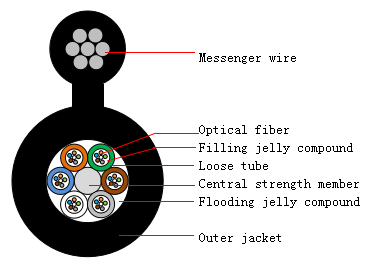

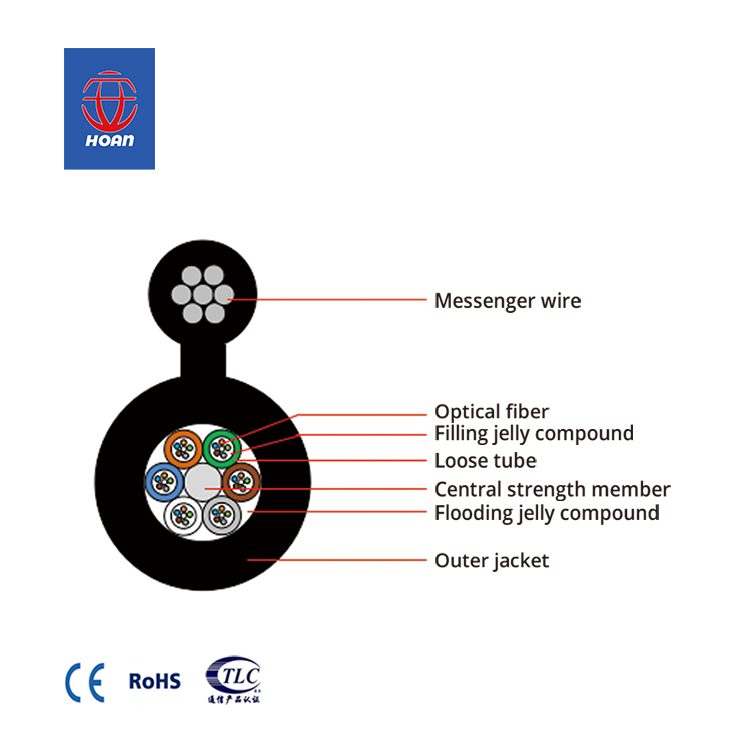

Product Structure Diagram:
Product Description:
GYTC8Y (loose layer twisted structure, metal reinforcement, cable paste filling, polyethylene sheath, 8-shaped)
Execution standard:
YD/T 1155-2011 8-shaped self-supporting optical cable for communication
Technical parameters (typical values):
core count | structure |
outer diameter（mm） |
weight（kg/km） |
tensile force（N） long-term short-term |
Flattening force（N） long-term short-term |
bend radius（mm） static dynamic |
2-30 | 1+5 | 8.0×14.9 | 122 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
32-36 | 1+6 | 8.4×15.3 | 136 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
38-60 | 1+5 | 8.6×15.5 | 132 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
62-72 | 1+6 | 9.2×16.1 | 152 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
74-84 | 1+7 | 10.1×17.3 | 166 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
86-96 | 1+8 | 10.7×17.9 | 183 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
98-108 | 1+9 | 11.4×18.6 | 188 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
110-120 | 1+10 | 12.2×19.1 | 202 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
122-132 | 1+11 | 12.8×19.7 | 216 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
134-144 | 1+12 | 13.5×20.8 | 238 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
Note
1. D refers to the diameter of the optical cable;
2. Corresponding technical parameters can be adjusted according to customer needs;
3. The water blocking method can be adjusted according to customer needs;
4. Specific designs for flame-retardant, rodent proof, and ant proof optical cables can be made according to customer needs.
