Self supporting overhead optical cable product series
Product Application:
This optical cable is suitable for self-supporting overhead.
Product Features:
Excellent waterproof performance;
Excellent lateral compression resistance, tensile strength, and good temperature performance;
The 8-shaped overhead structure with steel suspension wires is easy to lay.
Operating temperature: -40 ℃ to+70 ℃
transmission performance
Fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | G.652 1310nm/1550nm | G.655 1550nm/1625nm |
Maximum attenuation value（dB/km） | 3.5/1.5 | 3.5/1.5 | 0.36/0.22 | 0.22/0.26 |
Typical attenuation value（dB/km） | 3.5/1.5 | 3.0/1.0 | 0.35/0.21 | 0.21/0.24 |
Note: Other optical fibers that meet user needs can also be provided

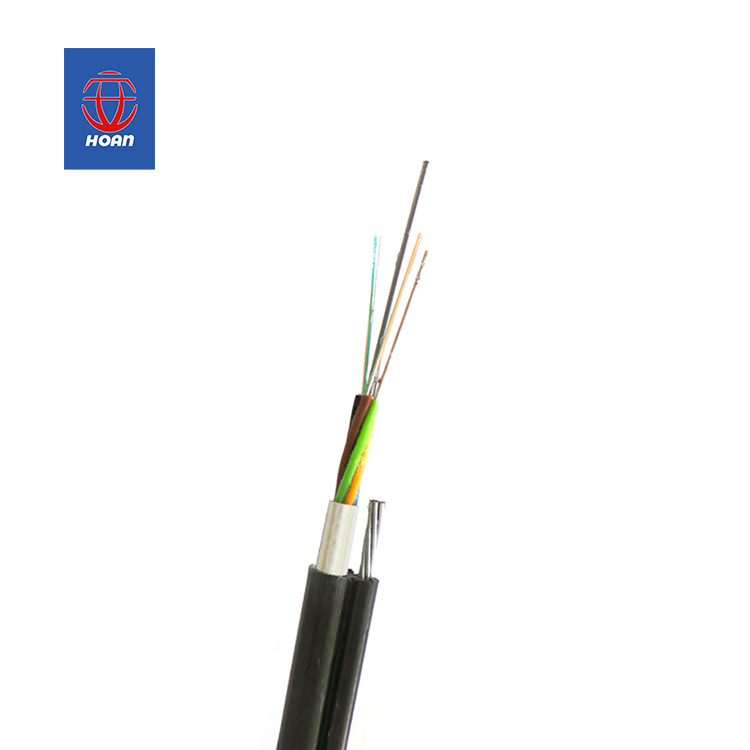

GYTC8A

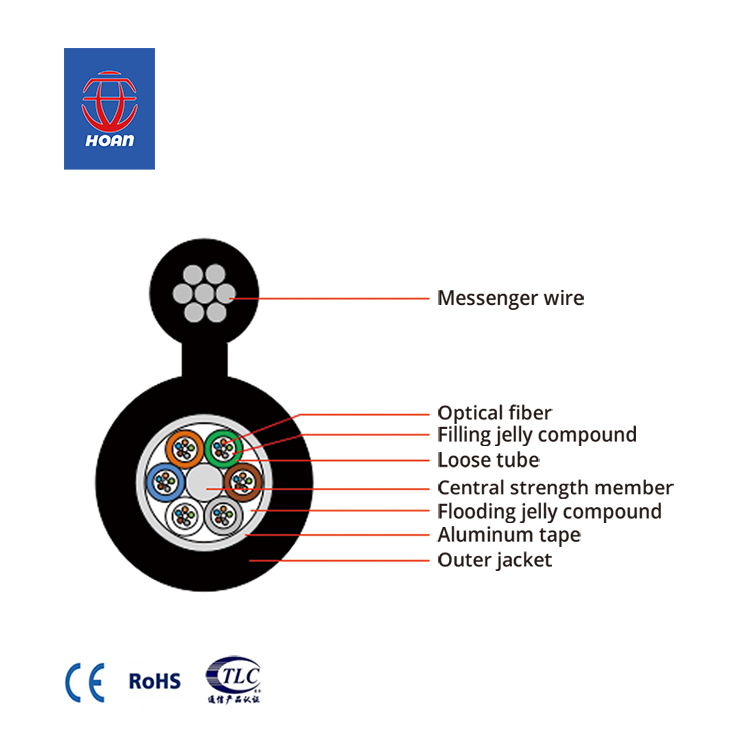

Product Structure Diagram:
Product Description:
GYTC8A (loose layer twisted structure, metal reinforcement, cable paste filling, aluminum polyethylene adhesive sheath, 8-shaped)
Execution standard:
YD/T 1155-2011 8-shaped self-supporting optical cable for communication
Technical parameters (typical values):
core count | structure | outer diameter（mm） | weight（kg/km） | tensile force（N） long-term short-term | Flattening force（N） long-term short-term | bend radius（mm） static dynamic |
2-30 | 1+5 | 9.0×15.9 | 135 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
32-36 | 1+6 | 9.4×16.3 | 149 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
38-60 | 1+5 | 9.7×16.6 | 147 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
62-72 | 1+6 | 10.4×17.3 | 170 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
74-84 | 1+7 | 11.5×18.4 | 186 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
86-96 | 1+8 | 12.0×19.2 | 204 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
98-108 | 1+9 | 12.8×19.7 | 211 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
110-120 | 1+10 | 13.5×20.4 | 219 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
122-132 | 1+11 | 14.1×21.0 | 240 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
134-144 | 1+12 | 14.8×22.1 | 263 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
Note
1. D refers to the diameter of the optical cable;
2. Corresponding technical parameters can be adjusted according to customer needs;
3. The water blocking method can be adjusted according to customer needs;
4. Specific designs for flame-retardant, rodent proof, and ant proof optical cables can be made according to customer needs.
