Air blown micro cable product series
Product Application:
This optical cable is suitable for air blown laying method.
Product Features:
Lightweight and small outer diameter;
Excellent bending performance;
Excellent lateral compression resistance, tensile strength, and good temperature performance;
Operating temperature: -40 ℃ to+70 ℃
transmission performance
Fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | G.652 1310nm/1550nm | G.655 1550nm/1625nm |
Maximum attenuation value（dB/km） | 3.5/1.5 | 3.5/1.5 | 0.36/0.22 | 0.22/0.26 |
Typical attenuation value（dB/km） | 3.5/1.5 | 3.0/1.0 | 0.35/0.21 | 0.21/0.24 |
Note: Other optical fibers that meet user needs can also be provided

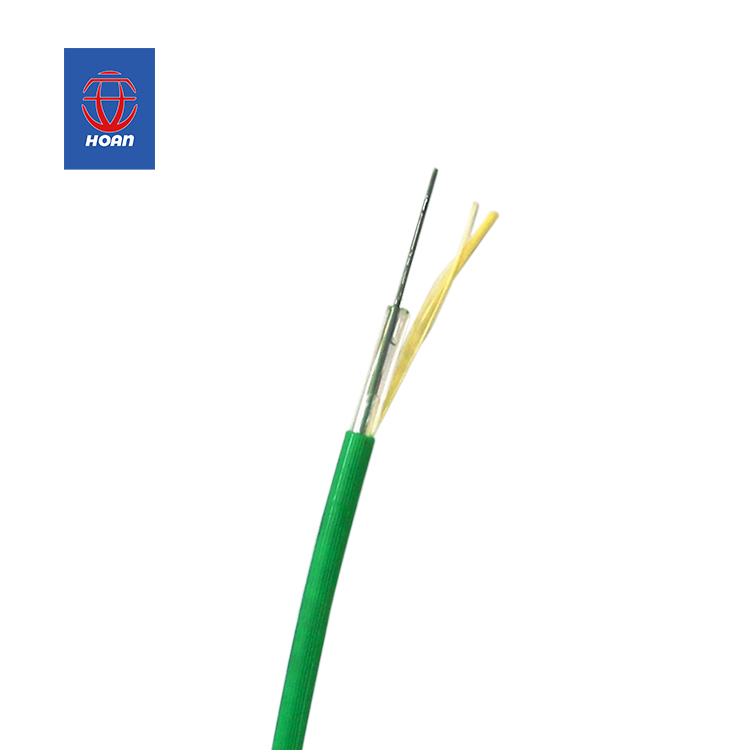

Micro air blown micro cable

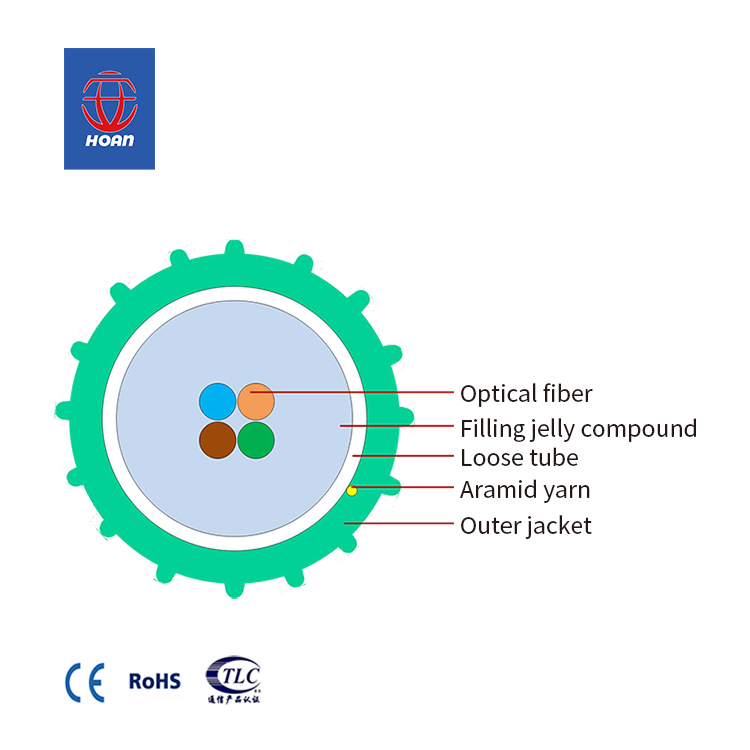

Product Structure Diagram:
Product Description:
Micro air blown micro cable (center tube structure, aramid yarn tear rope, polyethylene sheath)
Execution standard:
YD/T 1460-2006 Gas blown Micro Fiber Optic Cable and Fiber Optic Unit for Communication
Technical parameters (typical values):
core count | structure | Fiber optic cable specifications | Weight (kg/km) | Minimum bending radius (mm) |
2 | Central tube type | 2.6 | 5 | 20D |
4 | Central tube type | 2.6 | 5 | 20D |
6 | Central tube type | 2.6 | 5 | 20D |
8 | Central tube type | 2.6 | 5 | 20D |
12 | Central tube type | 2.6 | 5 | 20D |
note
1. Corresponding technical parameters can be adjusted according to customer needs;
