Product series of optoelectronic hybrid cables for access networks

Product Application:

This optical cable is mainly used in DC remote power supply systems or areas with inconvenient power access

Mainly solve the communication and power supply problems of FTTH or mobile communication network terminal equipment

Product Features:

Can simultaneously achieve optical communication and power transmission;

Excellent lateral compression resistance, tensile strength, and good temperature performance;

Operating temperature: -40 ℃ to+70 ℃

transmission performance

Note: Other optical fibers that meet user needs can also be provided

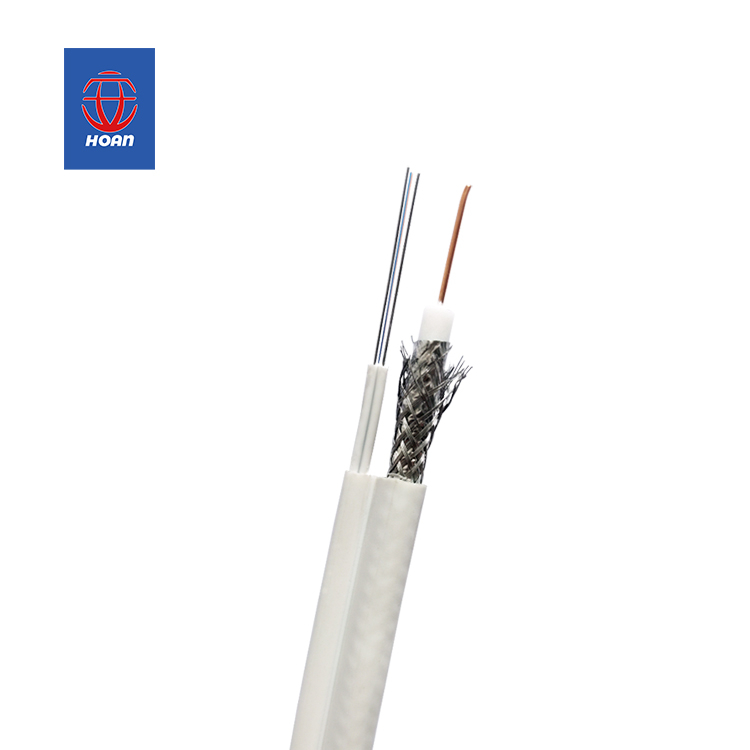

SYWV-75-5+GJXH

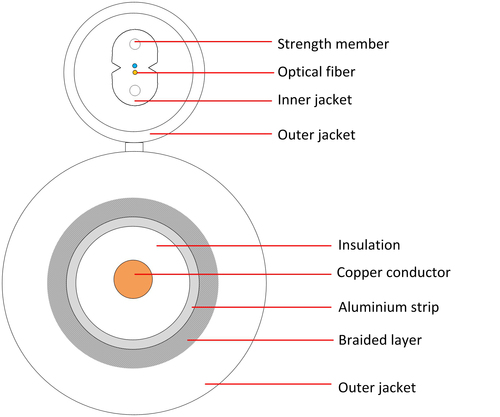

Product Structure Diagram:

Product Description: How to Translate：

SYWV-75-5+GJXH (coaxial cable: polyethylene insulation, aluminum foil shielding, magnesium aluminum alloy braided shielding, polyvinyl chloride outer sheath; Butterfly shaped optical cable: metal reinforced components, low smoke halogen-free polyolefin inner sheath, low smoke halogen-free polyolefin outer sheath)

Execution standard:

GB/T 17737.1-2013 Coaxial Communication Cables

YD/T 1997.1-2014 Butterfly shaped fiber optic cable for access network

Technical parameters (typical values):

Note

1. D refers to the diameter of the optical cable;

2. Corresponding technical parameters can be adjusted according to customer needs;
