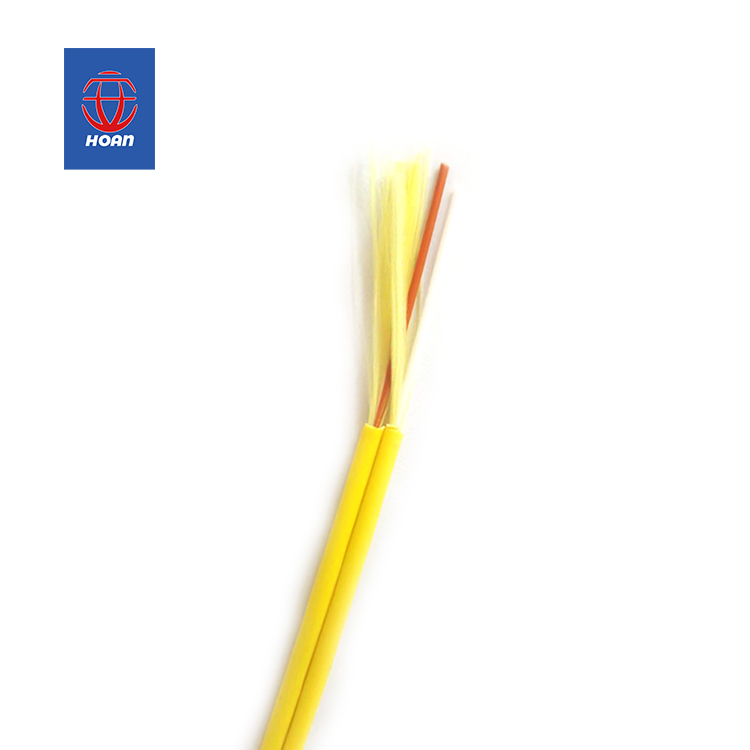

Jumper fiber optic cable product series
Product Application:
This optical cable is suitable for interconnection between instruments and communication equipment.
Product Features:
Small outer diameter, light weight, flame retardant, easy to peel off, and high flexibility;
High strength aramid reinforcement with good tensile performance;
Tightly fitted dry structure, convenient for construction and maintenance.
Operating temperature: -20 ℃ to+70 ℃
transmission performance
Fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | 50μm（OM3） 850nm/1300nm | SM 1310nm/1550nm |
Maximum attenuation value（dB/km） | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 |
Typical attenuation value（dB/km） | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 | 0.38/0.25 |
Note: Other optical fibers that meet user needs can also be provided
Single core circular optical cable GJFJH

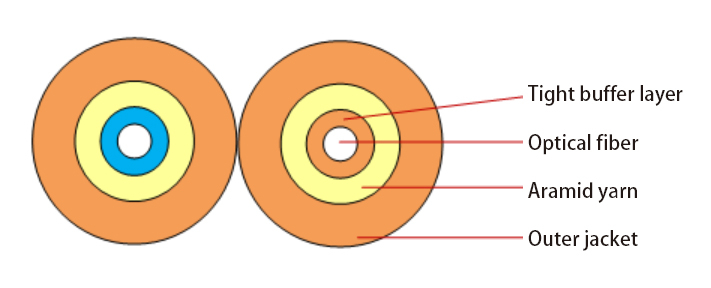

Product Structure Diagram:
Product Description:
GJFJH (tight fitting structure, aramid yarn reinforcement, low smoke halogen-free sheath)
Execution standard:
YD/T 1258.2-2009 Indoor Optical Cable Series Part 2: Single core and Dual core Optical Cables for Terminal Optical Cable Components
Technical parameters (typical values):
core count | Specifications （mm） | weight（kg/km） |
Tensile force (N) Long term and short-term |
Flattening force (N) Long term and short-term |
Bending radius (mm) Static and dynamic |
1 | 1.6×3.3 | 3.9 | 60 | 120 | 200 | 500 | 30 | 60 |
1 | 1.8×3.7 | 4.6 | 60 | 120 | 200 | 500 | 30 | 60 |
1 | 2.0×4.1 | 7.5 | 60 | 120 | 200 | 500 | 30 | 60 |
1 | 2.4×4.9 | 9.7 | 60 | 120 | 200 | 500 | 30 | 60 |
1 | 3.0×6.1 | 13.0 | 120 | 240 | 200 | 500 | 30 | 60 |
Note
1: Corresponding technical parameters can be adjusted according to customer needs;
2. PVC and other protective sheath materials can be used according to customer needs.
