Indoor cabling optical cable product series
Product Application:
The optical cable is suitable for multi-directional transmission between instruments or communication equipment.
Product features:
Small outer diameter, light weight, flame retardant, easy to peel, and high flexibility;
High strength aramid reinforcement, good tensile performance;
The tight dry structure is convenient for construction and maintenance.
Operating temperature: -20℃ to +70℃
transmission performance
Optical fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | 50μm（OM3） 850nm/1300nm | SM 1310nm/1550nm |
Maximum attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 |
Attenuation typical value (dB/km) | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 | 0.38/0.25 |
Note: Other optical fibers can also be provided based on user requirements.

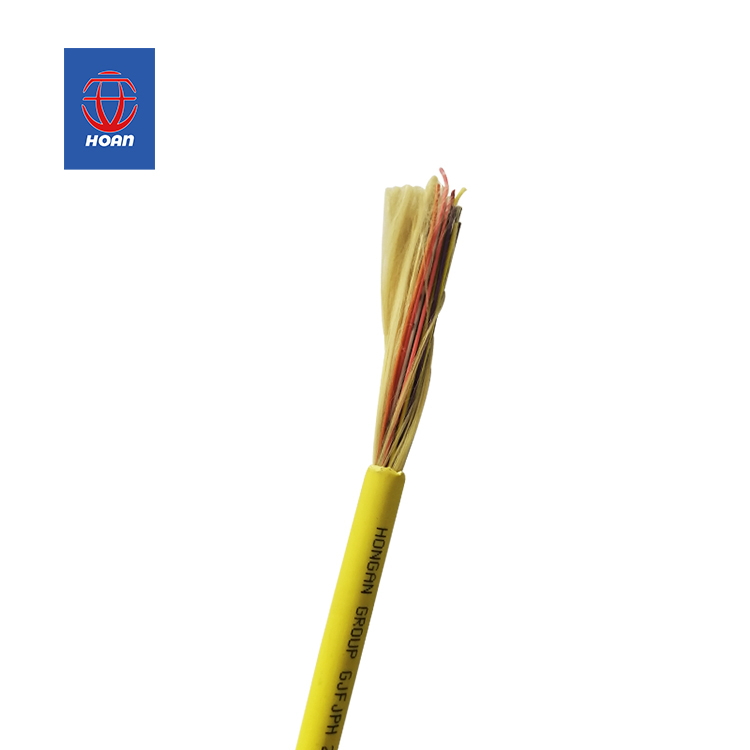

GJPFJH distribution optical cable

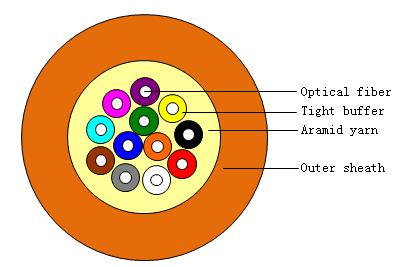

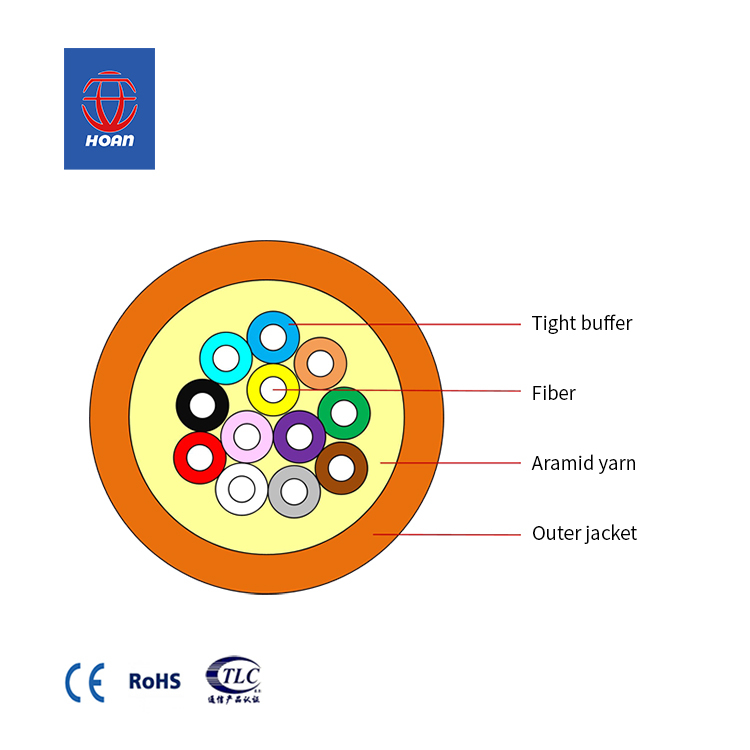

Product structure diagram:
product description ：
GJPFJH (Tight-Coated Structure with Aramid Reinforcement and Halogen-Free Low-Smoke Sheath)
operative norm ：
YD/T 1258.4-2005 Indoor Optical Cable Series: Multi-core Optical Cable
Technical parameters (typical values):
Wiring method | Number of cores | specifications （mm） | Weight (kg/km) | Stretch force (N) Long term short term | Flattening force (N) Long term short term | bending radius （mm） Static Dynamic |
Horizontal routing | 4 | 4.7 | 20 | 130 | 440 | 200 | 1000 | 10D | 20D |
Horizontal routing | 6 | 5.2 | 25 | 130 | 440 | 200 | 1000 | 10D | 20D |
Horizontal routing | 8 | 5.8 | 30 | 130 | 440 | 200 | 1000 | 10D | 20D |
Horizontal routing | 12 | 6.3 | 36 | 130 | 440 | 200 | 1000 | 10D | 20D |
Vertical routing | 4 | 5.0 | 22 | 200 | 660 | 300 | 1000 | 10D | 20D |
Vertical routing | 6 | 5.5 | 27 | 200 | 660 | 300 | 1000 | 10D | 20D |
Vertical routing | 8 | 6.0 | 31 | 200 | 660 | 300 | 1000 | 10D | 20D |
Vertical routing | 12 | 6.5 | 37 | 200 | 660 | 300 | 1000 | 10D | 20D |
Note 1.D refers to the diameter of the optical cable;
2. The corresponding technical parameters can be adjusted according to customer requirements;
3. The system can be equipped with PVC or other customer-specified sheath materials based on requirements.
