Indoor cabling optical cable product series
Product Application:
The optical cable is suitable for multi-directional transmission between instruments or communication equipment.
Product features:
Small outer diameter, light weight, flame retardant, easy to peel, and high flexibility;
High strength aramid reinforcement, good tensile performance;
The tight dry structure is convenient for construction and maintenance.
Operating temperature: -20℃ ~ +70℃
transmission performance
Optical fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | 50μm（OM3） 850nm/1300nm | SM 1310nm/1550nm |
Maximum attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 |
Attenuation typical value (dB/km) | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 | 0.38/0.25 |
Note: Other optical fibers can also be provided based on user requirements.
GJPFJH Composite Optical Cable

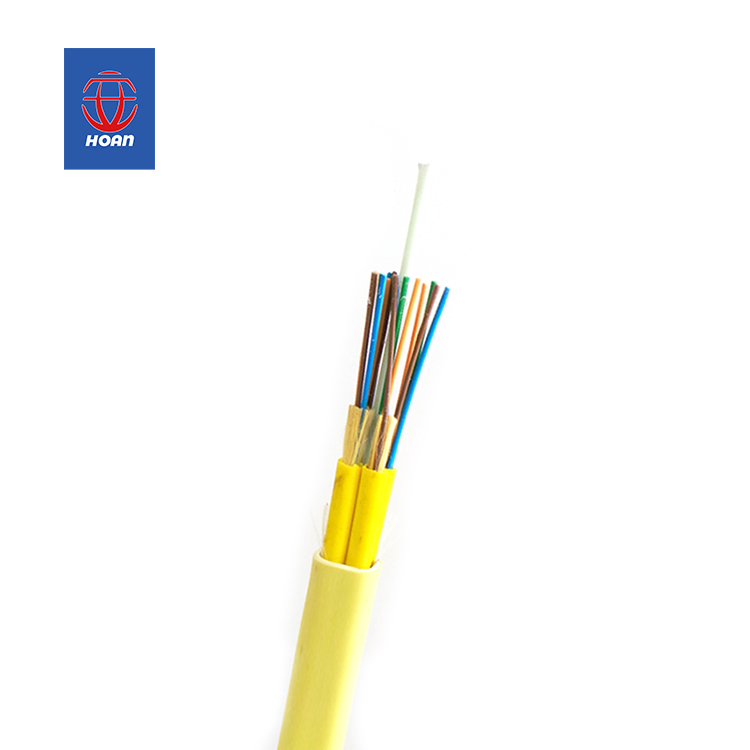

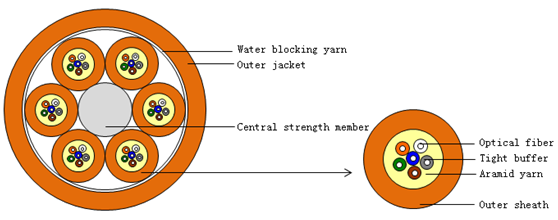

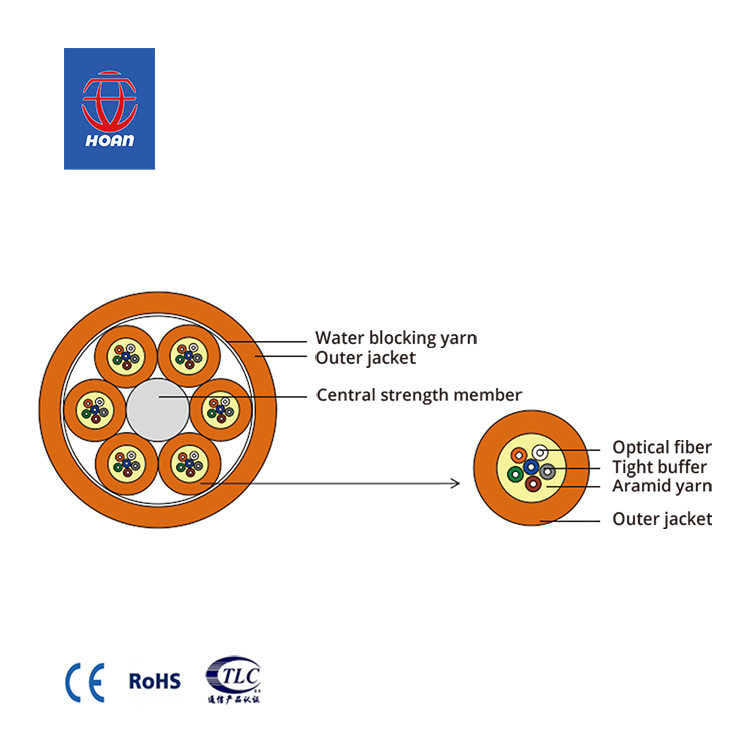

Product structure diagram:
product description ：
GJPFJH (Tight-Coated Structure, Layer-Wound Structure, Aramid Reinforcement, Low Smoke Halogen-Free Sheath)
operative norm ：
YD/T 1258.4-2005 Indoor Optical Cable Series: Multi-core Optical Cable
Technical parameters (typical values):
Number of cores | structure | specifications （mm） | Weight (kg/km) | Stretch force (N) Long term short term | Flattening force (N) Long term short term | bending radius （mm） Static Dynamic |
24 | 1+4 | 14.5 | 176 | 500 | 1000 | 300 | 1000 | 10D | 20D |
48 | 1+6 | 17.6 | 279 | 600 | 1500 | 300 | 1000 | 10D | 20D |
60 | 1+5 | 18.1 | 284 | 600 | 1500 | 300 | 1000 | 10D | 20D |
72 | 1+6 | 19.7 | 340 | 1000 | 2000 | 300 | 1000 | 10D | 20D |
96 | 1+8 | 23.1 | 476 | 1100 | 2200 | 300 | 1000 | 10D | 20D |
Note 1.D refers to the diameter of the optical cable;
2. The corresponding technical parameters can be adjusted according to customer requirements;
3. The system can be equipped with PVC or other customer-specified sheath materials based on requirements.
