Indoor cabling optical cable product series
Product Application:
The optical cable is suitable for multi-directional transmission between instruments or communication equipment.
Product features:
Small outer diameter, light weight, flame retardant, easy to peel, and high flexibility;
High strength aramid reinforcement, good tensile performance;
The tight dry structure is convenient for construction and maintenance.
Operating temperature: -20℃ to +70℃
transmission performance
Optical fiber type | 62.5μm（OM1） 850nm/1300nm | 50μm（OM2） 850nm/1300nm | 50μm（OM3） 850nm/1300nm | SM 1310nm/1550nm |
Maximum attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 |
Attenuation (dB/km) | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 | 0.38/0.25 |
Note: Other optical fibers can also be provided based on user requirements.
Branch optical cable GJBFJH

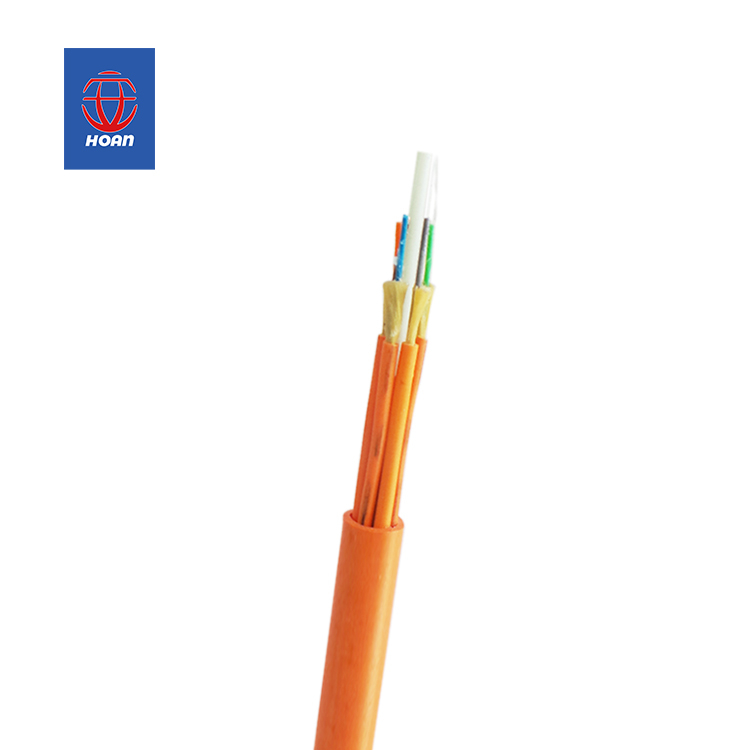

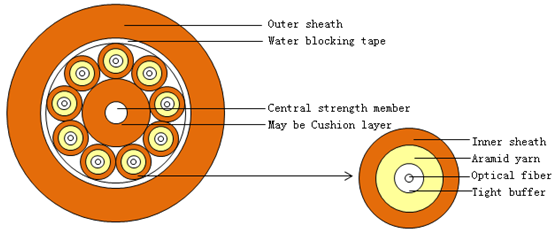

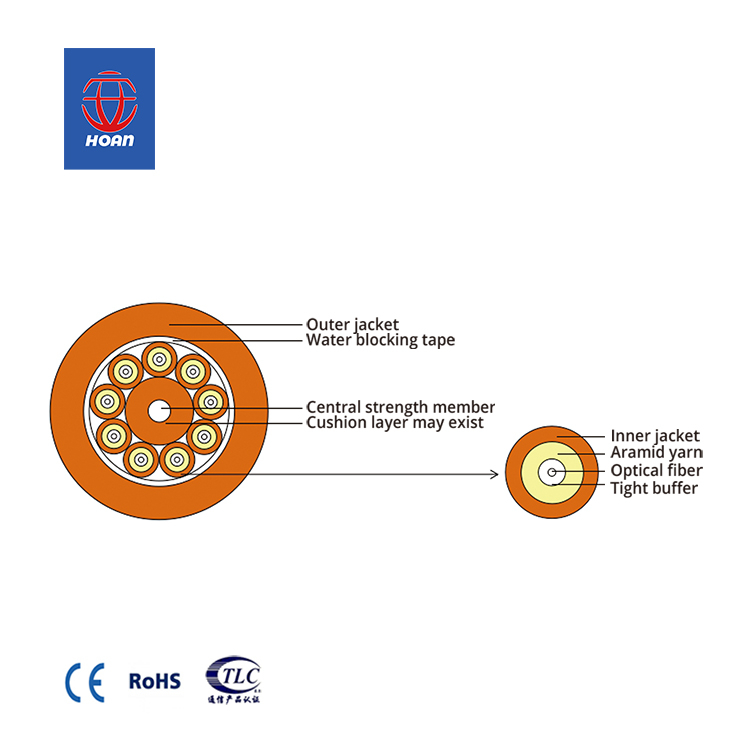

Product structure diagram:
product description ：
GJBFJH (Tight-Coated Stranding Structure, Aramid Reinforcement, Water-Resistant Tape, Low Smoke Halogen-Free Sheath)
operative norm ：
YD/T 1258.4-2005 Indoor Optical Cable Series: Multi-core Optical Cable
Technical parameters (typical values):
Number of cores | specifications （mm） | Weight (kg/km) | Stretch force (N) Long term short term | Flattening force (N) Long term short term | bending radius （mm） Static Dynamic |
4 | 7.5 | 52 | 210 | 450 | 300 | 1000 | 10D | 20D |
6 | 8.5 | 70 | 320 | 650 | 300 | 1000 | 10D | 20D |
8 | 9.5 | 89 | 420 | 850 | 300 | 1000 | 10D | 20D |
10 | 10.8 | 115 | 600 | 1200 | 300 | 1000 | 10D | 20D |
12 | 12.5 | 145 | 600 | 1200 | 300 | 1000 | 10D | 20D |
14 | 11.8 | 115 | 650 | 1300 | 300 | 1000 | 10D | 20D |
16 | 12.5 | 127 | 750 | 1500 | 300 | 1000 | 10D | 20D |
18 | 12.8 | 142 | 1000 | 2000 | 300 | 1000 | 10D | 20D |
20 | 13.3 | 155 | 1000 | 2000 | 300 | 1000 | 10D | 20D |
22 | 14.0 | 167 | 1000 | 2000 | 300 | 1000 | 10D | 20D |
24 | 14.8 | 185 | 1200 | 2400 | 300 | 1000 | 10D | 20D |
Note
1. D refers to the diameter of the optical cable;
2. Corresponding technical parameters can be adjusted according to customer needs;
3. PVC and other protective sheath materials can be used according to customer needs.
